Stone Crusher

Processing Capacity: 1-105t/h Max. Feeding Size: 1500mm Processed Materials: river stone, gravel, granite, carborundum, bauxite, basalt, mine ore, quartz sand, diabase, etc. Applications: mining, cement plant, refractory materials, building sand, metallurgy,aggregate field, concrete mixing plant, quartz sand, etc.

Stone crushers are also called rock breakers, which are essential equipments in mining crushing process. The major types of stone crusher machines are jaw crusher, impact crusher, cone crusher, hammer crusher, roll crusher, compound crusher, etc.

Get a Quote Services Online
Detailed Description

Stone crushers are also called rock breakers, which are essential equipments in mining crushing process. According to different working principles, the major types of stone crusher machines are jaw crusher, impact crusher, cone crusher, hammer crusher, roll crusher, compound crusher, etc.

 It can also be divided into large and small stone crusher machines according to specific sizes of machines. Rock crusher is very suitable for crushing and reshaping of ores with low or medium hardness, which is widely used in such industries as mining, cement plant, refractory materials, building sand, metallurgy and so on. it has a better effect in crushing quartz sand, carborundum, bauxite and other materials that are hard to crush and process.

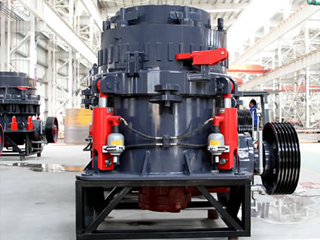

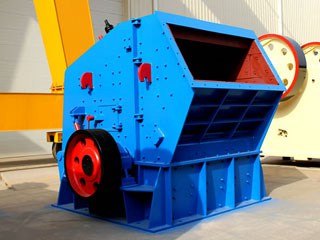

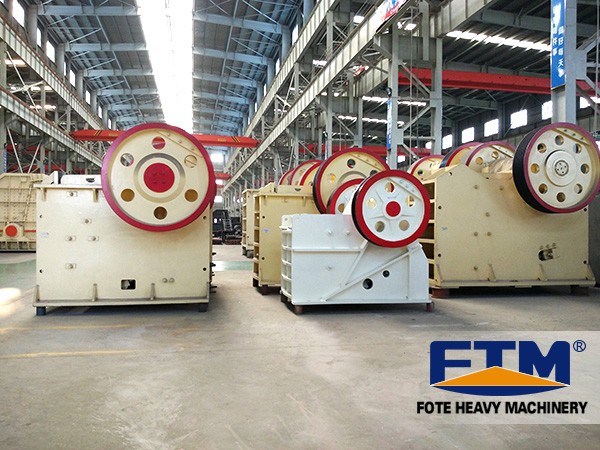

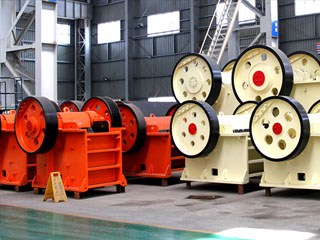

Jaw Crusher Cone Crusher Impact Crusher
Jaw Crusher Cone Crusher Impact Crusher

Applications of Fote Stone Crusher

In mining processing process, stone crushing machine is mainly used for primary crushing of stones before ore beneficiation, thus improving production efficiency and reducing difficulty and energy consumption of ore beneficiation. In the field of engineering construction, rock crushing machine is mainly used for stone crushing and reshaping, which is important auxiliary equipment of asphalt mixing plant and concrete mixing station.

Stone Crusher

Main Features of Fote Rock Breakers

1. Hydraulic device makes maintenance of rock breakers more convenient, which greatly improves the ability of continuous production.
2. Self-checking lubrication system can ensure the lubrication of important parts, thus guaranteeing safe production.
3. Totally enclosed production mode can improve safety factors of workers during operation and reduce production risk.
4. Triangle belt transmission makes kinetic energy output is more smooth, thus reducing unit energy consumption.
5. Stone crusher has big reduction ratio, which has dual functions of fine crushing and coarse grinding.
6. Simple structure, easy installation and maintenance, low operation cost.
7. Small influence of moisture content of materials.
8. Cubic shape of finished products, low needle flake content, suitable for aggregate reshaping, artificial sand making and aggregate production of high-grade highways.
9. Big stacking density of product and little iron pollution.

Fote Machinery is a professional manufacturer and supplier of stone crushers, if you want to know more information about stone crusher market price, please sent us emails to info@sinoftm.com or leave us a message, we will contact you as soon as possible.

Technical Parameters
Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 4P   5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 4P   7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 4P   11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-21 300 6P   15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 6P   30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 6P   55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 6P   55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-160 250 6P   55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 8P   110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 8P   110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 8P   110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 8P   110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 8P   110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-380 200 8P   110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 8P   110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 6P   160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 8P   280-355 139 5160×3660×4248
PEX-150×750 150×750 120 18-48 8-25 320 4P   15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 6P   22 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 6P   30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 6P   37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 6P   55 15.6 2720×1950×1600
