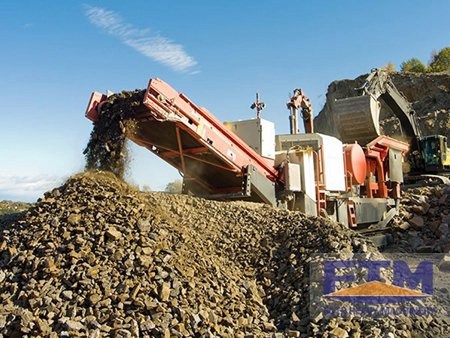

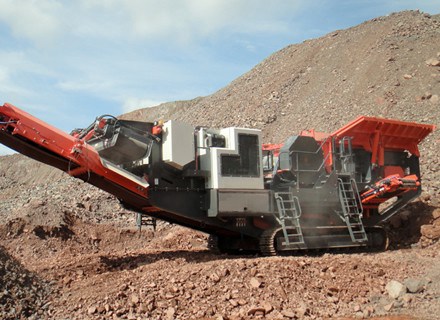

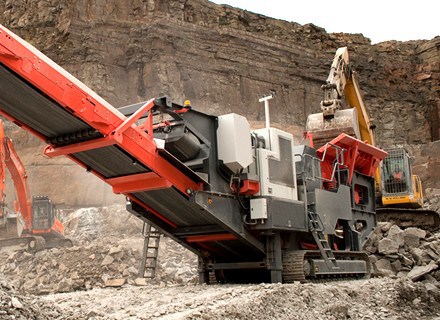

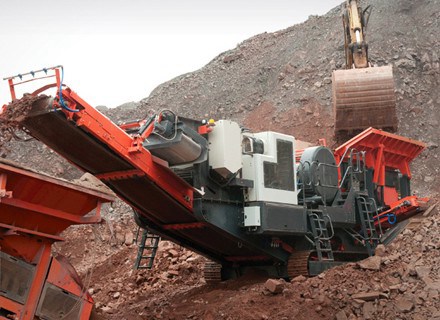

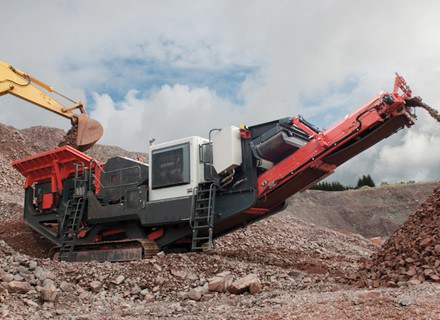

Crawler-type Mobile Jaw Crusher

Type: Primary Crusher Input Size: 0-1000mm Transportation weight: 43.5-67t Processed Materials: Iron ore, copper ore, gold ore, manganese ore, limestone, granite, basalt, andesite, quartz, silica, gypsum, volcanic rock, marble, river stone, gravel, coal, etc.

The crawler-type mobile jaw crusher produced by Fote Machinery perfectly combines the advantages of mobile crushing station and jaw crusher, and after the test of the market, it is of greater concern.

Get a Quote Services Online
Detailed Description

The crawler-type mobile jaw crusher produced by Fote Machinery perfectly combines the advantages of mobile crushing plant and jaw crusher, and after the test of the market, it is of greater concern. This mobile crusher can work at any bad working conditions, and gives the outstanding features of jaw crusher into full play. It is suitable for various working conditions and can carry out the crushing of minerals and rocks, the production of sand aggregate, the recycling of construction waste, the crushing of slag and tunnel rock and the processing cement raw materials.

Tracked Mobile Jaw Crusher Raw Materials
Tracked Mobile Jaw Crusher Barite, Quartz Stone, Copper Ore, Iron Ore, Pebble, Phosphate Ore

Crawler-type mobile jaw crusher inherits the features and advantages of jaw crusher and it is a “tiger” that can really move. The crushing chamber is hard and powerful. When this machine works, the movable jaw plate moves up and down through the eccentric shaft which is driven by the electric motor through belt pulley and belt. When the movable jaw goes up, the gap between the movable jaw and the fixed jaw will become large, then the stone materials will fall down under gravity; later, the gap between the movable jaw and the fixed jaw will become small and with the squeezing motion of the movable jaw, the stone materials will be crushed, and when the gap becomes large, the stone materials will be discharged from the bottom of the machine. Tracked mobile jaw crusher stimulates the mouthpart of an insect, so that its crushing principle has natural rationality.

Performance Features of Tracked Mounted Jaw Crusher

1. The engine is strictly chosen, so that the oil consumption can be minimized, thus saving your cost.
2. The portable crusher has strong flexibility and adaptability, so that it can work and move in any working conditions.
3. Allowed for the environment protection, the pollution discharge standard of this equipment totally conforms to the requirement of the relative regulation for the environment protection.
4. Following the features of jaw crusher, this new machine can crush large quantities of materials for long time, with high crushing efficiency.
5. Tracked mobile jaw crusher station has both mobility and reliability, making it able to quickly put into the designated production.
6. The operation of crawler-type mobile jaw crusher is easy, and any responsible operators can learn and grasp in short time and after a period, they can all independently and skillfully operate the machine.

Technical Parameters
Items Unit FTM935E69L FTM935FW1214IIL FTM1138E71L FTM1138FW315IIL FTM1138EW86L
Vibrating feeder   GZD-960×3500 GZD-960×3500 GZD-1100×3800 GZD-1100×3800 GZD-1100×3800
Jaw crusher   PE600×900 PE-1214II PE750×1060 PE-1615II PE860
Main belt conveyor   B800×8.5M B800×8.5M B1000×9M B1000×9M B1000×9M
Discharging height of main belt conveyor mm 3200 3200 3100 3000 3500
Side discharging belt conveyor (optional)   B450×3M B800×8.5M B1000×3.5M B500×3.5M B500×3.5M
Discharging height of side discharging belt conveyor mm 2800 2800 3100 3000 3100
Motor power kw 180 250 200 300 250
Transportation length mm 11900 11900 13300 13300 14200
Transportation width mm 3100 3100 3100 3100 3300
Transportation height mm 3660 3660 4510 4510 5010
Transportation weight t 43.5 50 59 59 67
Working length mm 12110 12110 13510 13510 15210
Working width mm 3110 3110 3110 3110 3310
Working height mm 4100 4100 5100 4800 5500
