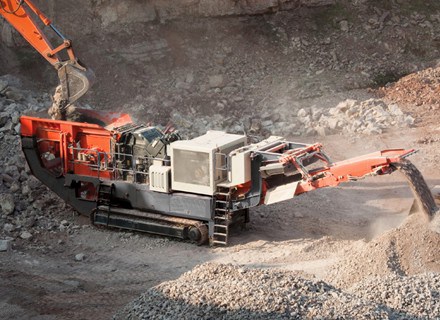

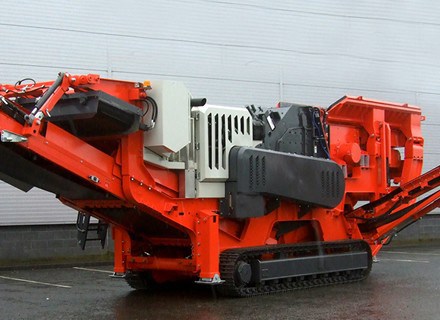

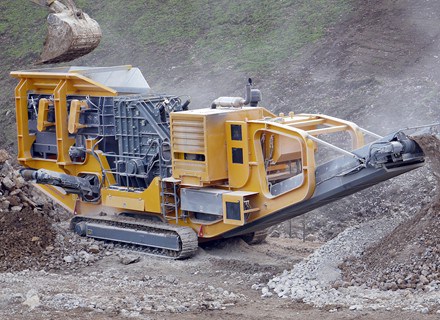

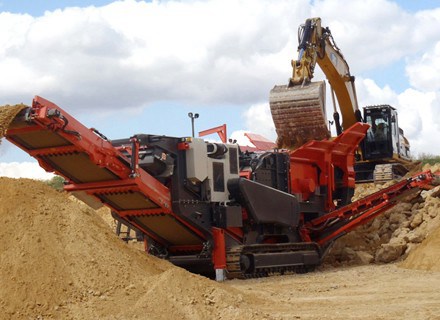

Crawler-type Mobile Impact Crusher

Type: Secondary Crusher Input Size: 0-700mm Processed Materials: Iron ore, copper ore, gold ore , manganese ore, limestone, granite, basalt, andesite, quartz, silica, gypsum, volcanic rock, marble, river stone, gravel, coal, etc. Applications: Primary coarse & medium crusher in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.

The crawler-type mobile impact crusher, also known as track-mounted mobile impact crusher and tracked mobile impact crusher, integrates the features of flexibility and convenience of mobile crushing station and combines the feature of big crushing ratio of impact crusher.

Get a Quote Services Online
Detailed Description

Absorbing the advantages of traditional impact crusher and with unique design, crawler mobile impact crusher station is more suitable for movable processing, and the content of cubic-shaped particles is higher. Tracked mobile impact crusher brings the concept of "more crushing and less grinding" to various crushing and construction sites, and it has many advantages such as big crushing ratio and high convenience, so that it is widely used in such industries as ore crushing, railway, highway, energy, cement, chemistry and construction.

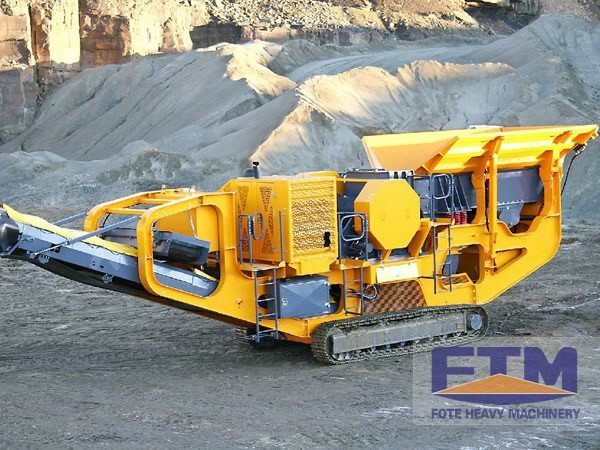

Tracked Mobile Impact Crusher

Track-mounted mobile impact crusher is suitable for crushing all kinds of materials whose compression strength does not exceed 350MPa and feeding granularity is smaller than 500mm such as concrete, granite and limestone. In addition, This kind of crusher mobile has no special limit on the fineness uniformity of the materials, and the it can freely adjust the discharging granularity and carry out diversified crushing, so that it is a most willing crushing machine and is widely used in such industries as ore crushing, railway, highway, energy, cement, chemistry and construction.

Performance Features of Tracked Mobile Impact Crusher

1. The big-sized feeding mouth can be fed in with big-sized materials for once, and the crushing wall has high hardness, so that it can adapt to materials with high hardness and there is only little powder dust in the production process.
2. The design of keyless design makes the examination and repair of the machine more convenient, thus effectively reducing the examination and repair time and improving the examination and repair efficiency.
3. The compact design mechanism, the upgraded engine body with heater tube and the rotor with big rotational inertia make sure the equipment run with high efficiency and stability.
4. Through adjusting the gap between the impact plate and the plate hammer, the discharging granularity and shape can be convenient adjusted and controlled.
5. High production efficiency and high wear-resisting spare parts ensure high comprehensive benefits.

Working Principle of Track Mounted Impact Crusher

Making use of the impact energy to crush materials is an outstanding feature of impact crusher and is the practical example of the concept of “more crushing and less grinding”. The rotor rotates with high speed driven by the electric motor. After the stone materials reach the actuating range of plate hammer, the materials will seriously hit the plate hammer, and then they will be crushed again when bounced to the first-level impact lining boards, and they will return to the plate hammer and hit the second-level impact plate hammer, as such, there will be three to four levels of crushing, and during this process, the stone materials will also hit each other. This crushing method reduces the abrasion of the quick-wear parts and increases the crushing ratio. If the discharging granularity and shape need to be changed, it can be realized by adjusting the gap between the impact frame and the rotor.

Technical Parameters
Model WT110 WT110S WT1213 WT1213S WT1315
Dimensions of Transmission Devices Length 14000mm 16000mm 15500mm 19000mm 17000mm
Width 3000mm 3200mm 3200mm 3600mm 3200mm
Height 3600mm 3600mm 3800mm 3800mm 3800mm
Weight 40t 45t 53t 60t 65t
Feeder Hopper Volume 3m³ 3m³ 5m³ 5m³ 5m³
Loading Height 3900mm 4000mm 3900mm 4100mm 4000mm
Primary Screen Power 5.2kw 5.2kw 6.12kw 6.12kw 6.12kw
Sieve Dimensions 1040×924mm 1040×924mm 1140×924mm 1140×924mm 1240×930mm
Crusher Model CI1110M CI1110M CI1213M CI1213M CI1315M
Inlet Dimensions 1020×860mm 1020×860mm 1320×900mm 1320×900mm 1540×900mm
Max.Feeding Size 400mm 400mm 500mm 500mm 600mm
The Feeder at the Bottom Hopper Volume 0.8m³ 0.8m³ 1m³ 1m³ 1.5m³
Power 5.2kw 5.2kw 5.2kw 5.2kw 6.12kw
Unearthed Belt Conveyors Dimensions(Width×Length) 650×3500mm 650×3500mm 650×3500mm 650×3500mm 650×3500mm
Dumping Height 2200mm 2200mm 2200mm 2200mm 2400mm
Main Belt Conveyor Dimensions(Width×Length) 1000×8500mm 1000×8500mm 1000×9900mm 1000×9900mm 1200×11000mm
Dumping Height 3300mm 3300mm 3500mm 3500mm 3800mm
Secondary Screen Power 6.12kw 6.12kw
Sieve Dimensions 1500×3600 1500×4200
Belt Conveyors at the Bottom Dimensions(Width×Length) 1000×5800mm 1000×6200mm
Dumping Height 2900mm 3000mm
Transferring Belt Conveyor Dimensions(Width×Length) 650×2500mm 650×2800mm
Dumping Height 1400mm 1400mm
Belt Conveyors for Discharging Material Dimensions(Width×Length) 500×8000mm 500×9200mm
Dumping Height 4200mm 4500mm
Iron Remover Model RCYQ-10 RCYQ-10 RCYQ-10 RCYQ-10 RCYQ-10
Diesel Engine Power 96kw 106kw 106kw 132kw 132kw
Manufacturer Carter Perkins Carter Perkins Carter Perkins Carter Perkins Carter Perkins
The Main Machine Power 253kw 274kw 304kw 324.4kw 366kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional)
