Mobile Impact Crusher

Type: Primary Crusher Input Size: 0-700mm Processed Materials: Iron ore, copper ore, gold ore , manganese ore, limestone, granite, basalt, andesite, quartz, silica, gypsum, volcanic rock, marble, river stone, gravel, coal etc. Applications: Primary coarse & medium crusher in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.

Recently our company researches and develops a star product-tyre mobile impact crusher which adopts the latest manufacturing technology and that is equipped with high-quality high chromium plate hammer and wear-resisting impact lining board.

Get a Quote Services Online
Detailed Description

Product Introduction of Wheel Mounted Mobile Impact Crusher

Recently our company researches and develops a star product-wheel mounted mobile impact crusher which adopts the latest manufacturing technology and that is equipped with high-quality high chromium plate hammer and wear-resisting impact lining board.

Tyre mobile impact crusher has big crushing ratio, and the excellent features of good granularity of the final products makes this set of crusher mobile equipment has wider application range.

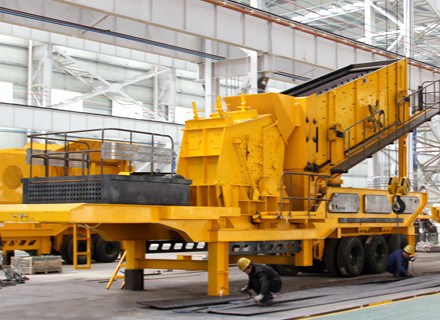

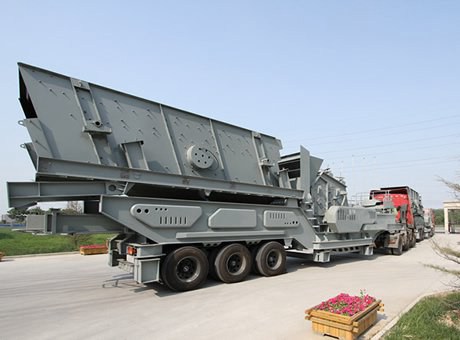

 Mobile Impact Crusher  Mobile Impact Crusher

Application Range of Wheeled Mobile Impact Crusher

Tyre mobile impact crusher is mainly used in the material processing industries that needs regular material transportation such as metallurgy, chemistry, building material and water and electricity for processing the stone materials with flowability in highway, railway and water and electricity projects. Customers can choose different configuration means according to the types of the raw materials to be processed, crushing size and the requirement for the final products. Wheel mobile primary impact crusher is especially suitable to be used in small crushing sites and for processing and crushing construction waste.

Performance Features of Wheel Mounted Mobile Impact Crusher

1. The equipment configuration is very flexible, as it can be independently used for production and combined with coarse crushing equipment for compound work.
2. Tyre mobile impact crusher has relatively high vehicle-mounted chassis and small radius of turning circle, making it convenient to drive in rugged and bad road environment of the crushing site.
3. The granularity of the produced final products is better and the whole working efficiency of tyre mobile impact crusher station is evidently improved.
4. The material transportation fees and production cost are reduced.
5. The installation of this portable breaker is integrated and the space layout is reasonable and compact, thus saving time and space for onsite construction.

Working Principle of Tyre Mobile Impact Crusher

When using tyre mobile impact crusher for crushing work, the materials to be crushed are directly crushed by the impact crusher to the medium or fine granularity, and then the crushed materials will go through the closed screening cyclic system formed by circular vibrating screen to directly become ideal final sand, and are conveyed to the designated placed by belt conveyor. According to the specific needs, this mobile crusher can be equipped with coarse crusher for secondary crushing and timely processing the materials.

Technical Parameters
Items Unit FTM938F1210 FTM938FW1214II FTM1142F1214 FTM1142F1315 FTM1142FW1315II FTM1349FW1318II
Transportation length mm 11900 11900 13100 13100 13100 14600
Transportation width mm 2550 2550 2800 2900 2800 2800
Transportation height mm 3900 3900 4460 4450 4360 4500
Max. length mm 12110 12110 13300 13300 13300 14610
Max. width mm 2900 2950 2950 2960 2950 3250
Max. height mm 4100 4100 5200 5200 5200 5200
Weight t 39 44 44 54 57 62
Tyre configuration   Dual axial Dual axle Tri-axial Tri-axial Tri-axial Tri-axial
Impact crusher   PF-120 PF-1214II PF-1214 PF-1315II PF-1315S PF-1318II
Max. feeding size mm 300 500 300 350 600 700
Processing capacity t/h 70-130 130-200 90-180 120-250 180-320 240-400
Vibrating feeder   GZD960*3800 GZD960*3800 GZD1100*4200 GZD1100*4200 GZD1100*4200 GZD1300*4900
Main belt conveyor   B800*8.5M B800*8.5M B1000*9M B1000*9M B1000*9M B1200*9.5M
Side discharging belt conveyor (optional)   B450*3.2M B450*3.2M B500*3.5M B500*3.5M B500*3.5M B650*4M
Genset (optional) kw 200 250 250 330 330 380
De-ironing separator (optional)   RCYD(C)-8 RCYD(C)-8 RCYD(C)-10 RCYD(C)-10 RCYD(C)-10 RCYD(C)-12
