Cone Crusher

Type: Secondary Crushing Input Size: 40-350mm Processed Materials: Iron ore, copper ore, gold ore, manganese ore, river stone, gravel, granite, basalt, mine ore, quartz, diabase, etc. (for hard stone) Applications: Aggregate field, concrete mixing plant, dry mortar plant desulfurization, quartz sand, etc.

Cone crusher is a mining machine used for stone crushing. The research and development of cone crushers is to make up for the shortcomings of traditional crushing equipment.

Get a Quote Services Online
Detailed Description

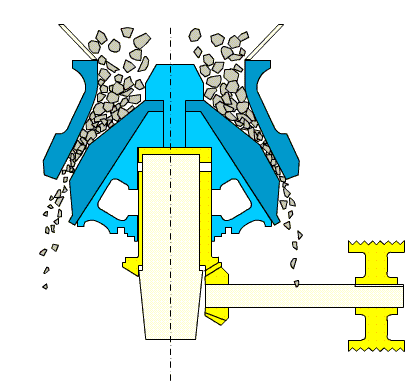

Cone crusher is a mining machine used for stone crushing. It can be called rock cone crusher and stone cone crusher. The research and development of cone crushers is to make up for the shortcomings of traditional crushing equipment.

Cone crushers are suitable for the fine crushing and ultrafine crushing of various hard ores and rocks and they have more reliable and more efficient working performance than traditional crushing equipment. Cone crusher is suitable for coarse crushing, medium crushing and fine crushing, and different models of cone breakers have different crushing efficiency, so that customers can choose a suitable one according to their specific need.

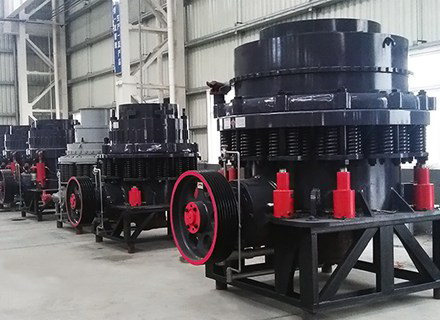

Cone Crusher

Development and Types of Cone Crusher

Cone crusher can also be called Symons cone crusher. In the development history of rock cone crusher, there are various models and traditional cone crusher adopts spring for reset, and spring cone crusher once became the fashion standard of cone crusher.

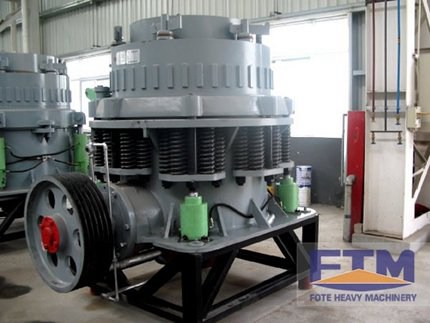

Cone Crusher

With the development of mining machinery industry, hydraulic cone crusher and compound cone crusher are researched and developed. Among them, compound cone crusher has both spring and hydraulic device, so that it is between spring cone crusher and hydraulic cone crusher. Adopting hydraulic device can make the equipment more automatic and intelligent, reduce the labor cost and reduce company investment.

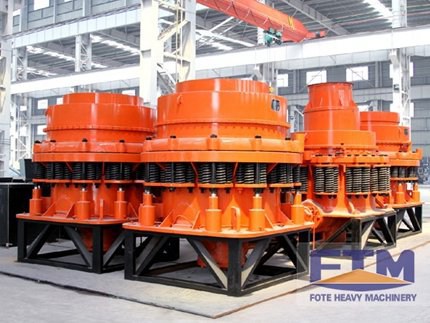

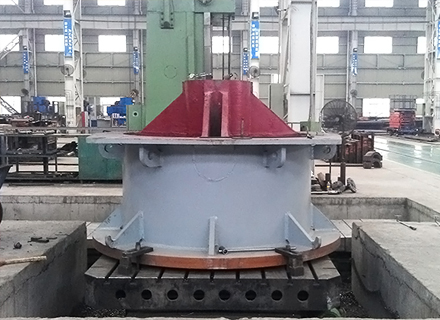

Compound Cone Crusher Spring Cone Crusher

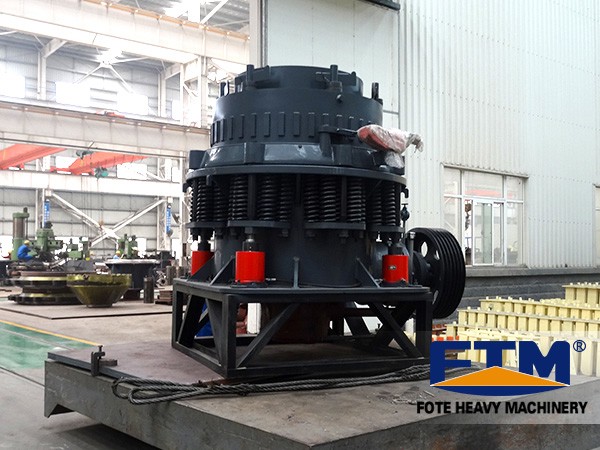

Compound Cone Crusher Spring Cone Crusher

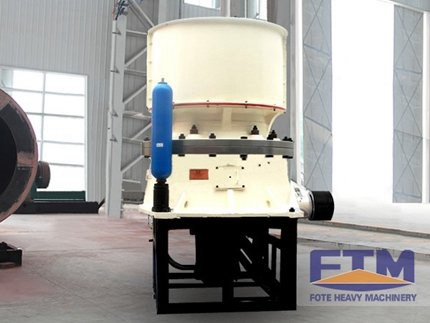

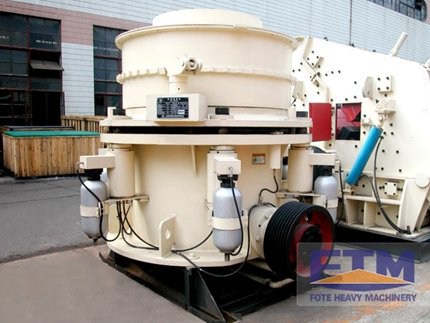

Single Cylinder Hydraulic Cone Crusher Multi-cylinder Hydraulic Cone Crusher
Single-cylinder Hydraulic Cone Crusher Multi-cylinder Hydraulic Cone Crusher
Technical Parameters
Specification Model Diameter
of large
end of
crushing
 cone
(mm)
Max.feeding
size(mm)
Width of
discharge
opening
(mm)
Processing
capacity
(t/h)
Motor
power
(kw)
Total
weight
(t)
Dimensions
(L×W×H)
(mm)
Φ600 PYB600 600 65 12-25 40 8P   30 5 2234×1370×1675
PYD600 35 3-13 12-23 5.5 2234×1370×1675
Φ900 PYB900 900 115 15-50 50-90 8P   55 11.2 2692×1640×2350
PYZ900 60 5-20 20-65 11.2 2692×1640×2350
PYD900 50 3-13 15-50 11.3 2692×1640×2350
Φ1200 PYB1200 1200 145 20-50 110-168 8P   110 24.7 2790×1878×2844
PYZ1200 100 8-25 42-135 25 2790×1878×2844
PYD1200 50 3-15 18-105 25.3 2790×1878×2844
Φ1750 PYB1750 1750 215 25-50 180-360 8P   160 50.3 3910×2894×3809
PYZ1750 185 10-30 80-210 50.3 3910×2894×3809
PYD1750 85 5-13 60-180 50.2 3910×2894×3809
Φ2200 PYB2200 2200 300 30-60 420-700 8P   280-260 80 4622×3302×4470
PYZ2200 230 10-30 130-410 80 4622×3302×4470
PYD2200 100 5-15 80-200 81.4 4622×3302×4470
