Hammer Crusher

Type: Hammer crusher Weight: 4.8t Condition: New Capacity: Customized Feeding Size: Less than 200mm

Hammer crusher is a crusher machine with the widest application in the stone crushing process and it has such features as simple structure and high production efficiency.

Get a Quote Services Online
Detailed Description

Overview of Hammer Type Crusher

Hammer crusher is a crusher machine with the widest application in the stone crushing process and it has such features as simple structure and high production efficiency. Compared with other crushing machines, the biggest advantage of hammer mill lies in that it can be used for the crushing process of both dry type and wet type.

Hammer crusher machine can be used in various industries such as mine, cement, coal, metallurgy and building material and it has excellent crushing effect on crisp materials with medium hardness. It can be divided into heavy hammer crusher and single-stage hammer crusher.

Hammer Crusher

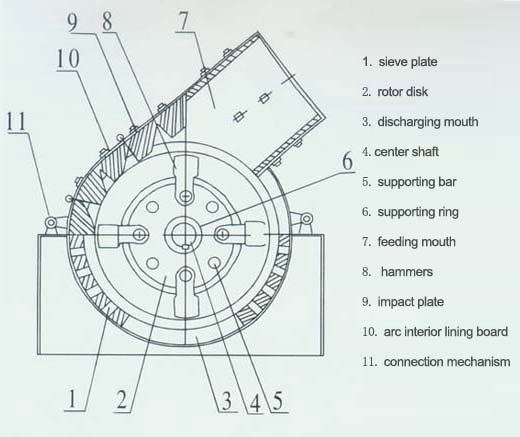

Structure Chart of Hammering Machine

Structure Chart of Hammering Machine

Running Principle of Hammering Machine

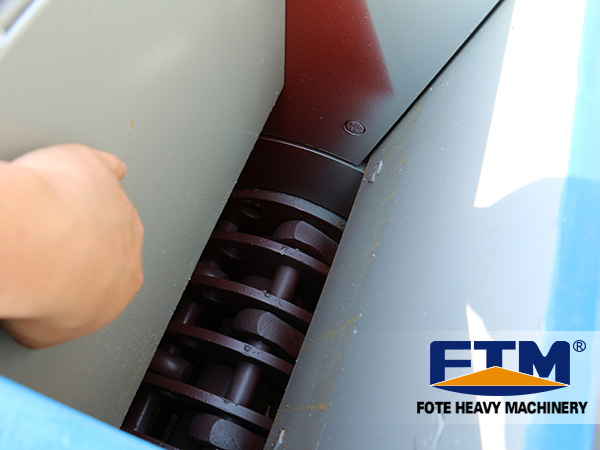

The main working part of hammering machine provided by hammer crusher manufactuer or hammer crusher supplier is the rotor with hammers. After going into the crushing chamber, the materials will be hit and crushed by hammers rotating with high speed.

Hammer Crusher

On the bottom of hammering machine, there is installed with screen net, so that after the crushed materials are discharged from the crushing chamber, the materials that do not satisfy the granularity requirement will be kept inside the crushing chamber to be crushed again until they can be discharged out from the screen net. Adjusting the screen net can control the granularity of final products.

Technical Parameters
Specification Capacity(m³/h)
Motor Power
(kw)
PCΦ400×300 5-10 4P 11KW
PCΦ600×400 10-22 4P 22KW
PCΦ800×600 18-40 6P 55KW
PCΦ1000×800 25-50 8P 75KW
PCΦ1000×1000 30-55 8P 90KW
