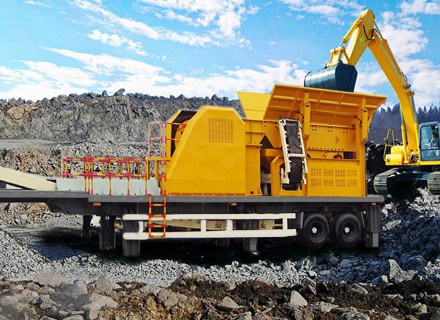

Mobile Jaw Crusher

Type: Primary Crusher Input Size: 0-1000mm Processed Materials: Iron ore, copper ore, gold ore, manganese ore, limestone, granite, basalt, andesite, quartz, silica, gypsum, volcanic rock, marble, river stone, gravel, coal etc. Applications: Primary crusher in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.

Mobile jaw crusher, also known as wheel monted mobile jaw crusher and wheeled mobile jaw crusher, is a rock crushing plant that consists of machine frame, jaw crusher, vibrating feeder, vibrating screen, conveyor belt, electric motor and control cabinet.

Get a Quote Services Online
Detailed Description

Product Introduction of Wheel Mounted Mobile Jaw Crusher

Wheel mounted jaw crusher is a rock crushing plant newly researched and launched by our company and its composing parts include machine frame, jaw crusher, vibrating feeder, vibrating screen, conveyor belt, electric motor and control cabinet. The strong crushing capacity of jaw crusher greatly improves the function of the tyre mobile jaw crusher.

Due to its unique tyre design, tyre mobile jaw crusher can carry out the movable crushing work even in rugged mountainous region, thus really providing customers with simple, convenient, highly efficient and low-cost rock crusher and it is one of the best mobile crushing plants at present.

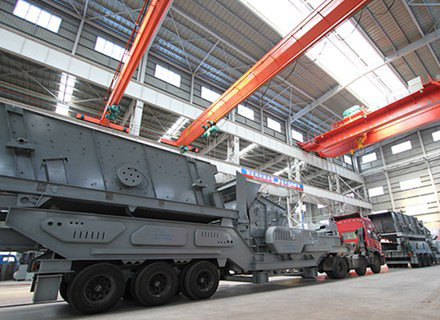

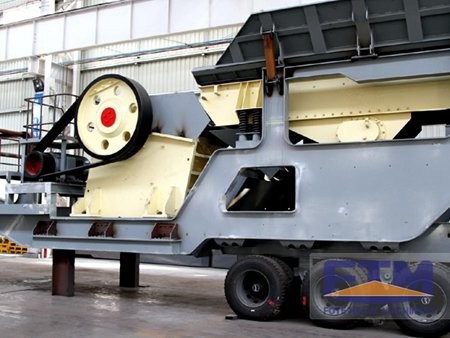

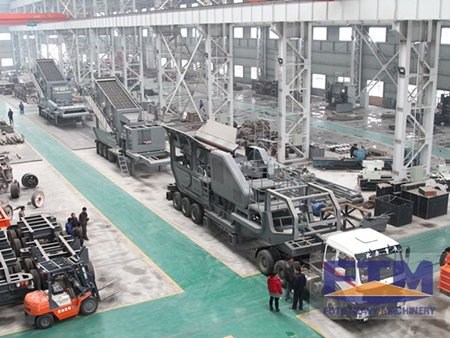

Mobile Jaw Crusher Production Workshop of Mobile Jaw Crusher

Application of Mobile Jaw Crusher

Tyre mobile jaw crusher is mainly used in such industries as metallurgy, chemistry and building material industry especially for the flow crushing work of highway, railway and water and electricity projects. Customers can choose different configuration means according to the types of the raw materials to be processed, crushing size and the requirement for the final products.

Performance Features of Wheel Mounted Mobile Jaw Crusher

1. Tyre mobile jaw crusher belongs to high performance mobile crushing station with big crushing ratio and strong crushing capacity.
2. The machines of this mobile crusher are integrated and the structure is compact, and it has low requirement for the working site.
3. The equipment adopts vehicle-mounted installation support and the equipment can be convenient and quickly stationed in the site.
4. The steering axis of traction is convenient for highway transportation and site penetration.
5. The short wheel base and small radium of turning circle make it convenient to drive in rugged and bad road environment of the crushing site.
6. Tyre mobile jaw crusher eliminates the barriers caused to the crushing process by the crushing site, environment and basic configuration.

Working Principle of Wheeled Mobile Jaw Crusher

The materials are evenly sent into the crusher, jaw crusher will carry out the primary crushing and vibrating screen will help to form a closed-circuit system to realize the cyclic crushing of the materials, and the final products will be conveyed by conveyor belt for continuous crushing. According to the actual production needs of the customers, tyre mobile jaw crusher can be equipped with other crushing machines to make the operation more convenient and flexible.

Technical Parameters
Items Unit FTM938E69 FTM1142E710 FTM1349E912 FTM11349EW86 FTM1349EW110
Transportation length mm 11910 13110 14610 14610 15410
Transportation width mm 2550 2550 1950 1550 1950
Transportation height mm 3650 4450 4500 4500 4500
Max. length mm 12110 13310 14650 14650 15460
Max. width mm 2900 2960 3310 3310 3310
Max. height mm 4060 4820 5300 5300 5700
Weight t 39 57 83 65 92
Tyre configuration   Dual axial Tri-axial Tri-axial Tri-axial Tri-axial
Jaw crusher   PE600*900 PE750*1060 PE900*1200 PE860 PE1100
Max. feeding size mm 480 630 750 730 940
Adjustment range of discharging mouth mm 65-160 80-140 100-200 75-225 150-275
Processing capacity t/h 90-180 110-320 220-450 150-500 300-650
Vibrating feeder   GZD960*3800 GZD1100*4200 GZD1300*4900 GZD1300*4900 GZD1300*4900
Main belt conveyor   B800*8.5M B1000*9M B1200*9.5M B1200*9.5M B1200*9.5M
Side discharging belt conveyor (optional)   B450*3M B500*3.5M B650*4M B650*4M B650*4M
Genset (optional) kw 160 200 220 250 300
De-ironing separator (optional)   RCYD(C)-8 RCYD(C)-10 RCYD(C)-12 RCYD(C)-12 RCYD(C)-12
