Roll Crusher

Type: Roll crusher Condition: New Motor Type: AC Motor Discharge size: 10-650mm Warranty: One year

Roll crusher is generally used as small crushing machine which can be used for crushing materials with medium hardness such as coal, building material and wear-resistant materials, and it has excellent crushing effect on building material and coal.

Get a Quote Services Online
Detailed Description

Roll crusher is generally used as small crushing machine which can be used for crushing materials with medium hardness such as coal, building material and wear-resistant materials, and it has excellent crushing effect on building material and coal.

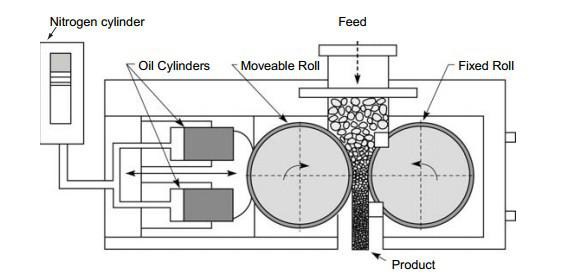

Roll crusher can also be called roller crusher. It is composed of two rollers rotating with opposite direction. Materials go into the space between the two rollers from the upper part and then will be squeezed and crushed by the two rollers, and crushed materials will be discharged from the bottom of the machine. The space between the two crushing rollers can be flexibly adjusted to produce products with different fineness.

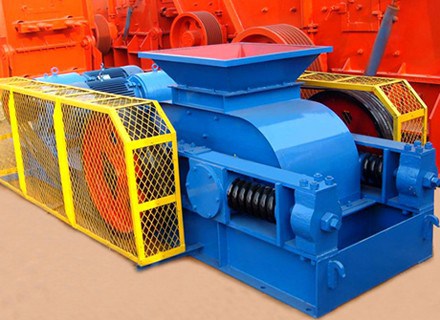

Roll Crusher

If materials that cannot be crushed such as materials with high hardness go into roller crusher, the two crushing rollers will draw back to directly discharge the foreign matters without being crushed, thus protecting the equipment from being damaged.

Types of Roller Crushers

The roller crushers can be divided into single roll crusher, double roll crusher, tooth roll crusher, four roller crusher, etc. Fote Machinery is a professional roller crusher manufacturer specilized in production of roll crushers. We can provide you with all kinds of roll crushers, for more information about roller crusher price, please leave us a message below or send us emails to info@sinoftm.com, we will contact you as soon as possible.

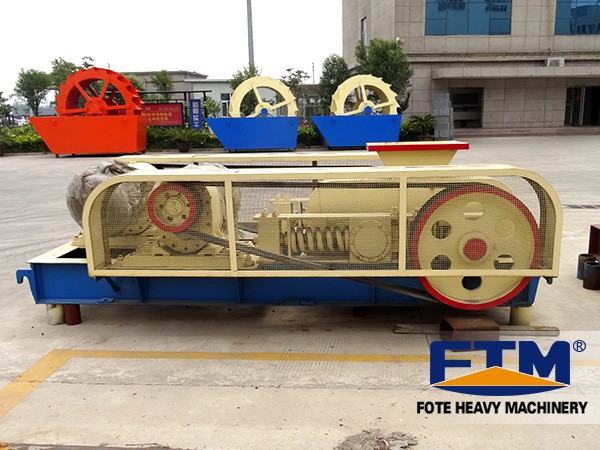

Roll Crusher

Technical Parameters
Model 2PG0425 2PG0640 2PG0740 2PG0850 2PG1060 2PG1260 2PG1560
Roller diameter(mm) Ф400 Ф600 Ф700 Ф800 Ф1000 Ф1200 Ф1500
Roller width(mm) 250 400 400 500 600 600 600
Input Size(mm) ≤25 ≤25 ≤25 ≤25 ≤30 ≤30 ≤30
Discharging Gate(mm) 2-8 2-8 2-8 2-8 2-10 2-10 2-10
Processing capacity(t/h) 5-10 10-20 15-30 20-40 30-50 40-70 60-110
Power Models Y132M-6 Y180L-6 Y200L-4 Y225M-4 Y250M-4 Y315M-6 Y315L-6
Motor power(kw) 5.5×2 15×2 30×2 45×2 55×2 75×2 110×2
