Belt Conveyor

Type: Necessary Equipment Input Size: 1.3-2.0 m/s Material Feature: Oil Resistant Processed Materials: River gravel, granite, basalt, quartz, iron ore, diabase, limestone, coal gangue, etc. Applications: Aggregate field, concrete mixing plant, dry motar plant desulfurization, quartz sand, etc.

As a short-distance conveying machine, belt conveyor has very wide application in various modern industries. A belt conveyor is composed of supporting device belt and roll riding wheel.

Get a Quote Services Online
Detailed Description

As a short-distance conveying machine, belt conveyor has very wide application in various modern industries. A belt conveyor is composed of supporting device, belt and roll riding wheel and the belt can be divided into common canvas belt, wire cable high-strength belt, inflaming retarding belt and cold-resistant belt.

Conveyor belt is usually used in various production lines to connect different machines. Several convery belts can form a conveyor belt system and improve the production efficiency. The commonly used conveying equipment is belt conveyor, and the belt conveyer manufactured by Fote Machinery has the advantages of big conveying amount, simple structure, convenient maintenance and standard spare parts. It has been widely used in many industrial departments such as mine, metallurgy and coal for transporting bulk materials and piece articles. According to the conveying requirement, one belt conveyor can convey materials independently or several belt conveyors form or with other conveying machines form a horizontal or tilted conveying system.

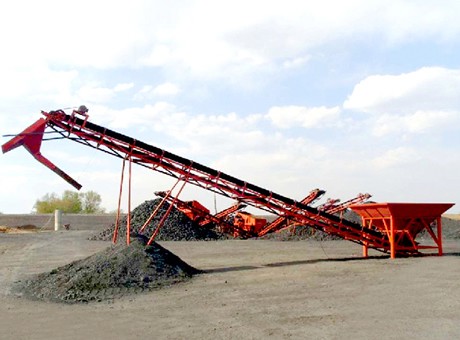

Conveyor belt

This series of conveying equipment can be used in the temperature ranges of -20℃~+40℃ and the temperature of the materials to be conveyed should be below 50℃.

Convery belt can be used for conveying various solid, lump, granular and powdery materials. According to different configurations in the production line, customers can choose different types of conveyor belt. In addition, when choosing a belt conveyor, customers should pay attention to the conveying ability, conveying speed of the equipment and the size of the equipment to choose the suitable one.

Technical Parameters
Belt width(mm) Conveying length(m)
Power(kw)
Conveying speed(m/s) Conveying amount(t/h)
400 ≤10
3
12-15
3-4
15-30
4-7.5
1.25-2.0 30-60
500 ≤10
3
12-15
4-5.5
15-30
5.5-7.5
1.25-2.0 40-80
650 ≤10
4
12-15
7.5
15-30
7.5-11
1.25-2.0 80-120
800 ≤10
4
12-15
7.5
15-30
7.5-15
1.25-2.0 120-200
1000 ≤10
5.5
10-20
7.5-11
20-40
11-22
1.25-2.0 200-320
1200 ≤10
7.5
10-20
7.5-15
20-40
15-30
1.25-2.0 290-480
1400 ≤10
11
10-20
15-22
20-40
22-45
1.25-2.0 400-680
1600 ≤10
15
10-20
22-30
20-50
30-75
1.25-2.0 600-1080
1800 ≤10
18.5
10-20
30-45
20-50
45-110
1.0-2.0 800-1500
2000 ≤10
22
10-20
45-55
20-50
55-132
1.0-2.0 1000-2000
2400 ≤10
30
10-20
55-75
20-50
75-185
1.0-2.0 1500-3000
