Jaw Crusher

Type: Primary Crusher Input Size: 200-1200mm Weight: 0.8~150.6t Processed Materials: Iron ore, copper ore, gold ore, manganese ore river stone, gravel, granite, basalt, minerals, quartz, diabase etc. Application: Mining, metallurgy, construciotn, highway, railway,water conservancy etc.

Jaw crusher is a traditional crushing machine and also the earliest one. It is composed to two jaw plates like those of animals.

Get a Quote Services Online
Detailed Description

Jaw crusher is a traditional crushing machine and also the earliest one. It is composed to two jaw plates like those of animals. It  can also be called jaw crusher machine and stone jaw crusher. According to the model size, jaw crushers can be divided into primary jaw crusher, medium jaw crusher and fine jaw crusher.

 Generally speaking, the smaller the machine is, the finer the fineness will be. Jaw crushers have simple working principle, reliable operation and convenient maintenance, so that they are the first choice for primary crushers in the crushing production line.

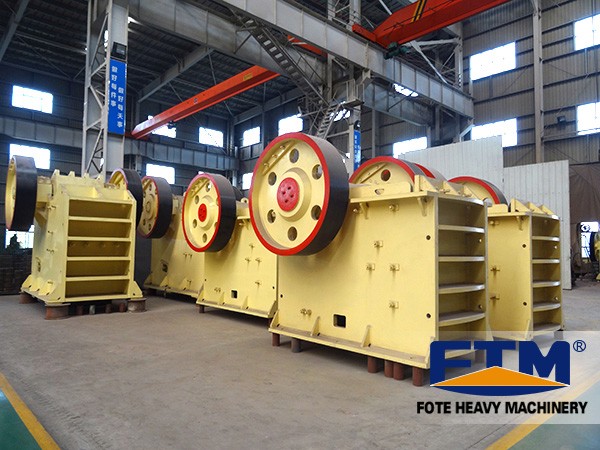

Jaw Crusher


Structure Chart of China Jaw Crusher

Structure Chart of Jaw Crusher

Structure Chart of Jaw Crusher

Good performance jaw crushers can also be divided into simple pendulum type and compound pendulum type, which mainly refers to the movement locus of the jaw plate. With the develometn of modern industrial technology, the reset spring of traditional jaw crushers is gradually replaced by hydraulic device, so that this machine will be more automatic and intelligent.

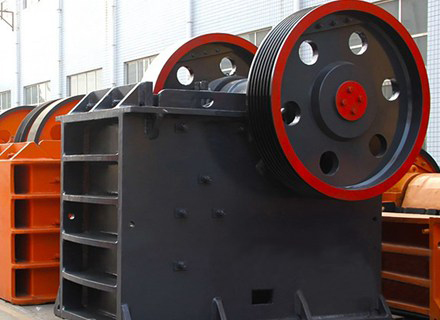

jaw crusher


Technical Parameters
Model
Feed opening
(mm)
Max.feeding size
(mm)
Adjusting range of discharge opening
(mm)
Processing capacity
(t/h)
Rotation speed of eccentric shaft
(r/min)
Motor power
(kw)
Total weight
(t)
Dimensions
(L×W×H)
(mm)
PE-150×250 150×250 125 10-40 1-3 250 4P   5.5 0.8 720×660×850
PE-200×300 200×300 180 15-50 2-6 260 4P   7.5 1.2 910×750×990
PE-200×350 200×350 180 18-70 3-10 260 4P   11 1.5 1000×870×990
PE-250×400 250×400 210 20-60 5-20 300 6P   15 2.8 1300×1090×1270
PE-400×600 400×600 340 40-100 16-60 275 6P   30 7 1730×1730×1630
PE-500×750 500×750 425 50-100 40-110 275 6P   55 12 1980×2080×1870
PE-600×750 600×750 500 150-200 80-240 275 6P   55 15.8 2070×2000×1920
PE-600×900 600×900 500 65-160 50-160 250 6P   55 17 2190×2206×2300
PE-750×1060 750×1060 630 80-140 110-320 250 8P   110 29 2660×2430×2800
PE-800×1060 800×1060 640 130-190 130-330 250 8P   110 29.8 2710×2430×2800
PE-830×1060 830×1060 650 160-220 150-336 250 8P   110 30.7 2740×2430×2800
PE-870×1060 870×1060 660 200-260 190-336 250 8P   110 31.5 2810×2430×2800
PE-900×1060 900×1060 685 230-290 230-390 250 8P   110 33 2870×2420×2940
PE-900×1200 900×1200 750 95-165 220-450 200 8P   110 52 3380×2870×3330
PE-1000×1200 1000×1200 850 195-265 315-500 200 8P   110 55 3480×2876×3330
PE-1200×1500 1200×1500 1020 150-350 400-800 180 6P   160-220 100.9 4200×3300×3500
PE-1500×1800 1500×1800 1200 220-350 500-1000 180 8P   280-355 139 5160×3660×4248
PE-1600×2100 1600×2100 1500 300-400 1300-2200 160 8P   350-380 150.6 6210×4013×4716
PEX-150×750 150×750 120 18-48 8-25 320 4P   15 3.8 1200×1530×1060
PEX-250×750 250×750 210 25-60 13-35 330 6P   22 5.5 1380×1750×1540
PEX-250×1000 250×1000 210 25-60 16-52 330 6P   30 7 1560×1950×1390
PEX-250×1200 250×1200 210 25-60 20-61 330 6P   37 9.7 2140×1660×1500
PEX-300×1300 300×1300 250 20-90 16-105 300 6P   55 15.6 2720×1950×1600
