Portable Crusher

Application Fields: Suitable for the disposal and crushing of construction waste, highway, railway and hydropower projects. Applied Materials: Granite, basalt, limestone, cobble, cement clinker, quartz, iron ore, bauxite and so on. Performance Advantages: Portable crusher can be directly driven to the selected working site without transport until it reaches the required size of finished product.

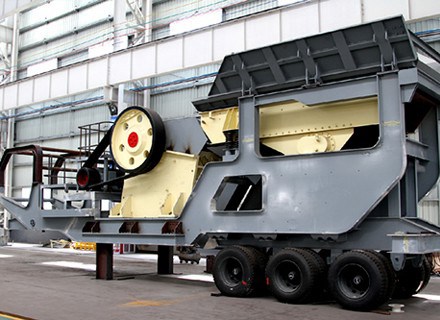

Portable crusher is also called mobile crusher, portable crushing plant and portable crusher plant, which is a new type of crushing equipment.

Get a Quote Services Online
Detailed Description

Portable crusher is mainly used for processing operations which often require relocation of materials in metallurgy industry, chemical industry, building materials industry, water and electricity sectors. Especially for the liquidity stone operations of highway, railway, hydropower projects and others, customers can adopt a variety of configuration according to the types of raw materials and sizes of finished product.

Portable crusher is suitable for crushing a variety of minerals or rocks with less than 250Mpa compressive strength, such as granite, basalt, limestone, cobble, cement clinker, quartz, iron ore, bauxite, construction waste, glass, coal, concrete aggregate, coal gangue, calcite, marble and so on. Here, we have listed some materials' pictures of portable crusher.

Basalt Calcite Coal Gangue
Basalt Calcite Coal Gangue
Limestone Construction Waste Concrete Aggregate
Limestone Construction Waste Concrete Aggegate

The Classification of Portable Crushing Plant

Fote portable crusher price is reasonable, and the specifications of the tyre portable crushers for sale are complete, which can be divided into the mobile jaw crushermobile impact crusher, mobile cone crusher and so on. At the same time, we can put forward multi combination according to expanded demand for the high-end customers to maximum extent. It also can be configured with the primary, secondary and tertiary crushing of materials according to the different needs of customers, as well as the portfolio optimization of crushing and screening systems.

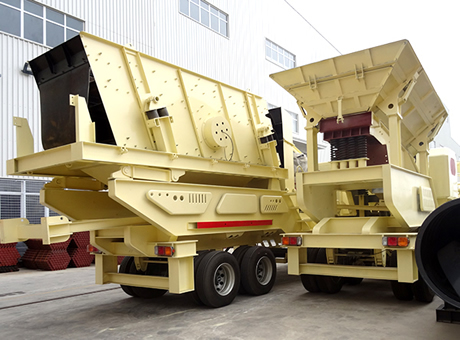

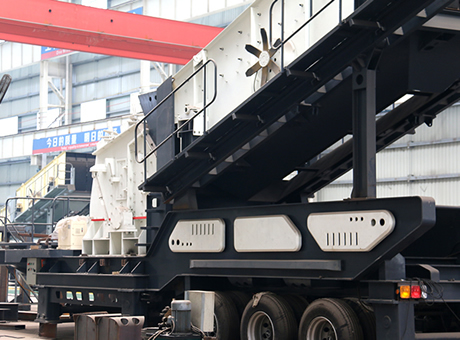

Portable Crusher

The Superior Features of Mobile Crusher

1. The jaw crusher series, impact crusher series and cone crusher series high performance crushers;
2. The integration of the feeder, crusher, belt conveyor and vibrating screen;
3. The traction of the steering axis, which is convenient for highway transportation and field depth;
4. The vehicle-loaded installation support, convenient site residence;
5. Vehicle mounted power supply, and the integration of motor and control box;

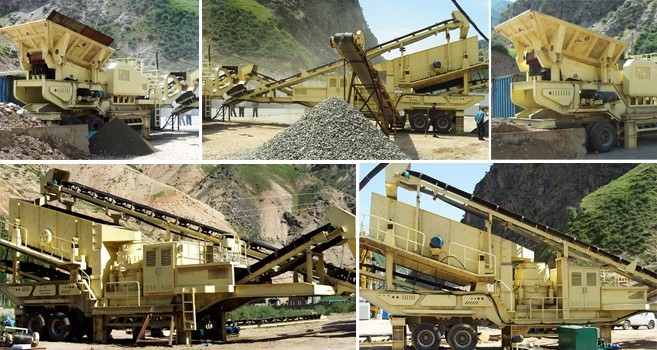

6. Reduce the transportation costs of materials. The rubber tyred mobile crusher plant can realize the first class crushing of materials based on the principle of "close to the material processing", which can prevent the materials from being transferred to the scene and then for crushing. It has left out the intermediate links of the operations, which greatly reduces the transport costs of materials;
7. Strong adaptability and flexible configuration. The rubber tyred mobile crusher station provides the simple configuration with low costs for customers. It cannot only carry out a single group of independent operation, but also can form a joint operation on the basis of the coarse and fine crushing systems.

Technical Parameters

MOBLIE IMPACT CRUSHER TECHICAL PARAMETERS

Model FTM938F1210 FTM938FW1214 FTM1149F1315 FTM1349HD1110 FTM1349HD1315
Transportation Length(mm) 12000 12000 13900 15450 15450
Transportation Width(mm) 2550 2550 2900 2950 2950
Transportation Height(mm) 3900 3900 4450 4500 4500
Maximum Length(mm) 12500 12500 13900 15450 15450
Maximum Width(mm) 3250 3260 3250 3250 3250
Maximum Height(mm) 5100 5200 5200 5200 5200
Weight(t) 39 44 54 62 62
Crusher Model PF-1210 PF-1214 PF-1315 HD1110 HD1315
The Maximum Feeding Size(mm) 350 350 500 400 700
Production Capacity(t/h) 70-130 100-180 130-250 112 280
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW110×4900 ZSW130×4900 ZSW130×4900
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9.5M B800×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3.2M B500×3.2M B650×4M B650×4M B650×4M
Genset(Optional) (kw) 320 320 400 320 440
Iron Separator (Optional)(kw) RCYD(C)-8 RCYD(C)-8 RCYD(C)-10 RCYD(C)-8 RCYD(C)-12

MOBLIE JAW CRUSHER TECHNICAL PARAMETERS

Model FTM938HD80 FTM1149HD98 FTM1349HD110 FTM1349HD125
Transportation Length(mm) 12600 13500 14500 15200
Transportation Width(mm) 2600 2700 2800 2900
Transportation Height(mm) 3870 4200 4450 4500
Maximum Length(mm) 12500 14000 16100 16700
Maximum Width(mm) 4100 4500 5100 5100
Maximum Height(mm) 4100 4900 5000 5300
Weight(t) 39 57 55 65
Tire Configuration Dual-axial Dual-axial Dual-axial Dual-axial
Jaw Crusher HD80 HD98 HD110 HD125
Maximum Feeding Size(mm) 500 550 660 800
Discharge Opening Size(mm) 50-150 75-175 100-200 125-225
Capacity(t/h) 85-275 110-350 215-510 280-650
Vibrating Model ZSW380×95 ZSW420×110 ZSW490×130 ZSW490×130
Main Belt Conveyor B800×8.5M B1000×9.5M B1000×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3M B650×3.5M B650×4M B650×4M
Genset(Optional) (kw) 200 250 270 400
Iron Separator (Optional) RCYD(C)-8 RCYD(C)-10 RCYD(C)-10 RCYD(C)-12
