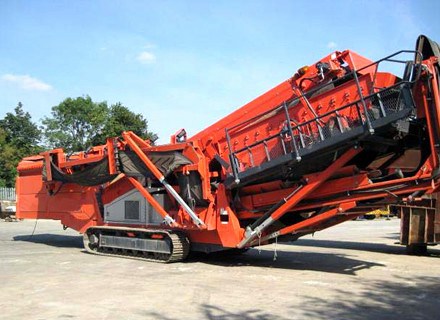

Crawler-type Mobile Screens

Type: Primary Crusher Input Size: 480-940mm Transportation length: 12300-13200mm Processed Materials: Concrete waste, iron ore, copper ore, gold ore, manganese ore, gravel, granite, river stone, basalt, limestone, dolomite, quartz, coal, etc . Applications: Mining, metallurgy, construction, highway, railway, and water conservative, etc.

The crawler-type mobile screen station manufactured by Fote Machinery perfectly combines the flexible and convenient movable crushing station and the screening equipment.

Get a Quote Services Online
Detailed Description

The crawler-type mobile screens manufactured by Fote Machinery perfectly combines the flexible and convenient movable crushing station and the screening equipment. Crusher equipment can never go without screening equipment, as without screening equipment, the significance of existence of crusher equipment will be reduced. Fote crawler-type mobile screen station absorbs and promotes the advantages of traditional screening equipment with high screening efficiency, low noise, long service life and stable operation, making it widely used in various industries such as refractory, chemistry, coal, metallurgy, building material and mines.

The track mounted screening plant produced by Fote Machinery is the best partner of the mobile crushers and is widely used various industries.

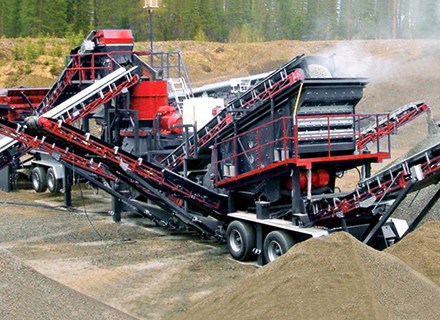

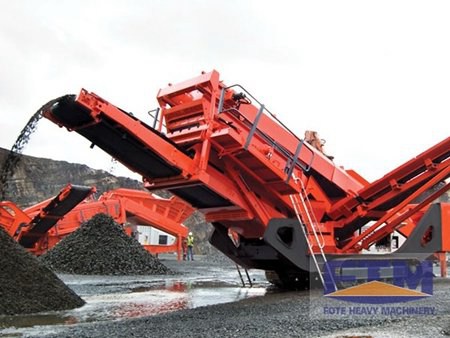

Mobile Screen Plant Mobile Screen Plant

After combining with mobile crusher and setting up a movable production flow, the vibrator of vibrating screen will produce shock excitation, making the stone materials discharged from the crusher equipment have reciprocating movement, and the stone materials reaching the granularity requirement will go through the screen holes and fall freely, and the stone materials that do not conform to the requirement will be returned by belt conveyor to crushing machine to be crushed again until become qualified. According to the difference of screen equipment, the stone materials will have linear or circular motion on the screen net.

Performance Features of Tracked Mobile Screen

1. The electricity consumed for screening unit stone materials is less.
2. The screening effect is outstanding.
3. The examination and repair and changing of the screen net is convenient.
4. This machine is convenient to be moved to another working place.

Technical Parameters
Items A type Dual-power feeding and screening crawler mobile station B type Dual-power feeding and screening crawler mobile station
Model H3S154GL H3S184GL H3S186GL H3S154BL H3S184BL H3S186BL
Vibrating screen 3HZS1548 3HZS1848 3HZS1860 3HZS1548 3HZS1848 3HZS1860
Feeding hopper Belt conveyor Grate bar type
Belt Conveyor  Feeding belt conveyor B1000×4M B1000×4M B1200×4.5M B1200×3M B1200×3M B1200×3M
Main belt conveyor B800×5M B1000×5M B1000×5M B1000×8M B1200×8M B1200×9M
Under-screen belt conveyor B800×4.5M B1000×4.5M B1000×5.5M B800×7M B1000×7M B1000×8M
Left-side discharging belt conveyor B500×7.3M B500×7.3M B650×7.3M B500×7.3M B500×7.3M B650×7.3M
Right-side discharging belt conveyor 1 B500×7.3M B500×7.3M B650×7.3M B500×7.3M B500×7.3M B650×7.3M
Right-side discharging belt conveyor 2 B500×7.3M B500×7.3M B650×7.3M B500×7.3M B500×7.3M B650×7.3M
Genset(Kw) 120 120 120 120 120 120
Transportation length(mm) 12300 12300 13500 12000 12000 13200
Transportation width(mm) 2700 2920 2920 2900 3150 3150
Transportation height(mm) 3900 3900 3900 3600 3600 3700
Transportation weight(t) 28 30 34 28 32 35
