Crawler Mobile Crusher

Feeding Size: 1-750mm
Production Capacity: 90-450t/h
Application Fields: Quarry, mining, coal exploiting, concrete mixing station, dry mortar, power plant desulfurization, quartz sand, etc.
Applied Materials: River gravel, granite, basalt, iron ore, limestone, quartz stone, iron, gold, copper, diabase, etc.

Crawler mobile crusher, also known as track-mounted mobile crusher, is independently researched and developed by Fote Machinery in order to meet the market demand.

Get a Quote Services Online
Detailed Description

Crawler mobile crusher is a kind of mobile crushing and screening plant which is driven by the full hydraulic pressure and walking with the chassis. It has high performance, high reliability and beautiful appearance, which has reached the international level of similar products. Fote crawler mobile crusher is widely applied to the crushing, screening and other operations for the construction of bridges and roads, buildings, metallurgy, energy, and other departments.

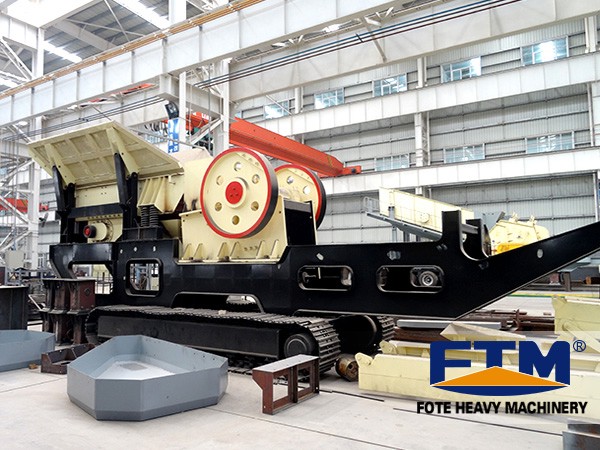

Crawler mobile crusher

It is a new kind of mobile crusher with the combination of the advantages of the most advanced and stable mobile crushers in the world.

The Classification of Crawler Type Mobile Crusher

Crawler type mobile crusher mainly adopts a jaw crusher and impact crusher, with screening and without screening types; closed-loop circuit. The crusher can be divided into four series – crawler type mobile cone crusher, crawler type mobile jaw crusher, crawler type mobile impact crusher and crawler type mobile screen station.

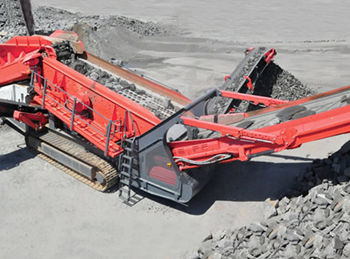

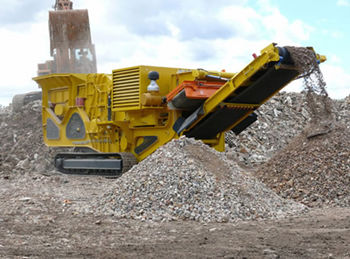

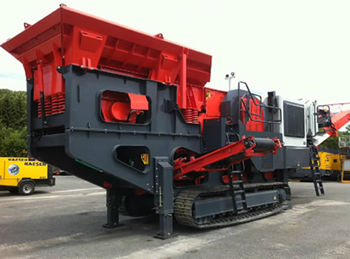

Crawler Mobile Jaw Crusher Crawler Mobile Impact Crusher

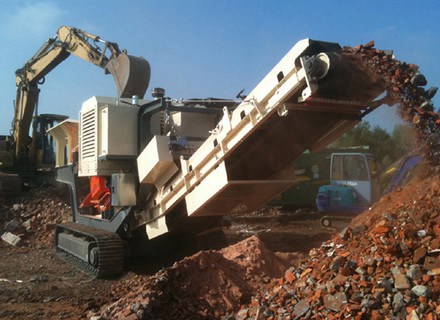

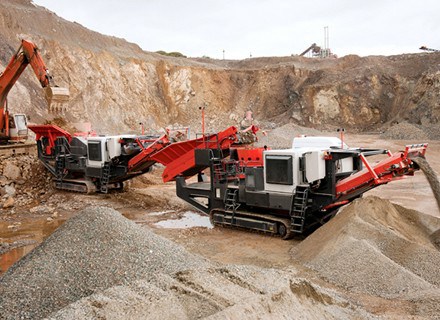

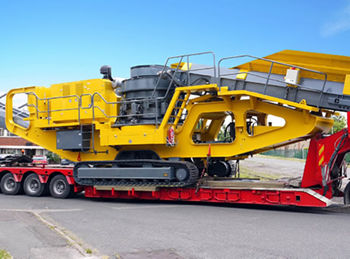

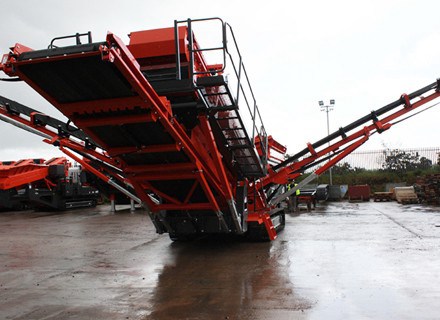

Crawler Mobile Cone Crusher Crawler Mobile Screening Plant

Crawler Mobile Crusher Application:

1. It is widely used in the field of mining, coal mine and construction waste recycling, and performs well on the site of earthwork, urban infrastructure construction, road construction and construction field.

2. Portable crawler crushing and screening plant has the feature of multifunction operation.

3. Processing topsoil and other materials, separating viscous concrete aggregate, applicable for construction and demolition industry, quarrying industry and screening after crushing.

Applicble Materials of Crawler Mobile Crusher

Cobble, rock (limestone, granite, diabase, basalt, andesite, etc.), ore tailings, construction waste, etc.

Andesite Granite Coal
Andesite Granite Coal
Ore Cement Clinker Construction Waste
Ore Cement Clinker Construction Waste

Performance Features of Crawler Mobile Crusher

1. It has the advantages of light weight, small size, which is suitable for narrow working site;
2. Convenient transportation; Walk with crawler without damage to the road surface; equipped with multi-function equipment, the wide range of applications;
3. The combination of feeding, crushing and conveying equipment. With the optimization of the process, it has excellent performance in rock crushing, aggregate production and open-pit mining operations. It can form a powerful crushing production line with the combination of different models to complete different processing demands;
4. The machine adopts the all wheel drive to realize pivot steering; the standard configuration and quick change device have safety protection function, especially suitable for narrow space and complex regions;
5. Fuel saving, with up to 25% saving rate;
6. It is equipped with power group – the most optimized design;
7. It can achieve climbing work to satisfy the crushing requirements of mine, hydropower station, coal and other engineering projects.

Fote Machinery has crawler mobile crusher for sale, which has reasonable price, top quality and thoughtful services. In addition to the crawler type mobile crusher, we also have rubber–tyred mobile crusher. If you are interested, please leave us a message or send emails to info@sinoftm.com, we will answer you as quickly as we can!

Technical Parameters
Classification
of items
A type Dual power crawler type mobile
feeding and screening plant
B type Dual power crawler type mobile
 feeding and screening plant
models Y3S154GL Y3S184GL Y3S186GL Y3S154BL Y3S184BL Y3S186BL
Vibrating
screen(mm)
3YZS1548 3YZS1848 3YZS1860 3YZS1548 3YZS1848 3YZS1860
Main belt
conveyor
Belt conveyor feeding Sorting and feeding
Belt
conveyor
Feeding
belt
conveyor
B1000×4M B1000×4M B1200×4.5M B1200×3M B1200×3M B1200×3M
Main belt
conveyor
B800×5M B1000×5M B1000×5M B1000×8M B1200×8M B1200×9M
Under
vibrating
 screen
B800×4.5M B1000×4.5M B1000×5.5M B800×7M B1000×7M B1000×8M
Left side-opening
 belt conveyor
B500×7.3M B500×7.3M B650×7.3M B500×7.3M B500×7.3M B650×7.3M
Right side-opening
belt conveyor1
B500×7.3M B500×7.3M B650×7.3M B500×7.3M B500×7.3M B650×7.3M
Right side-opening
belt conveyor2
B500×7.3M B500×7.3M B500×7.3M B500×7.3M B500×7.3M B650×7.3M
Genset(kw) 120 120 120 120 120 120
Transportation
length(mm)
12300 12300 13500 12000 12000 13200
Transportation
width(mm)
2700 2920 2920 2900 3150 3150
Transportation
height(mm)
3900 3900 3900 3600 3600 3700
Transportation
Weight(t)
28 30 34 28 32 35
