Mobile Cone Crusher

Type: Secondary Crusher Input Size: 0-200mm Processed Materials: Iron ore, copper ore, gold ore, manganese ore, limestone, granite, basalt, andesite, quartz, silica,gypsum, volcanic rock, marble, river stone, gravel, coal, etc Applications: Secondary medium & fine crusher is widely used in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy.

Tyre mobile cone crusher is mainly composed of high-performance cone crusher, high-performance vibrating screen, belt conveyor, electric motor and control cabinet.

Get a Quote Services Online
Detailed Description

Mobile cone crusher is mainly composed of high-performance cone crusher, high-performance vibrating screen, belt conveyor, electric motor and control cabinet. The whole mobile crushing plant adopts integrated installation and coordinating work, which fully represents its advantages of convenience and flexibility. Tyre mobile cone crusher is suitable to be used in fine crushing field for producing sand and stone products with high hardness and fine granularity.

According to the specific needs, the equipped cone crusher can be adjusted to different types of crushing chambers, thus expanding the use field and application ranges of tyre mobile cone crusher.

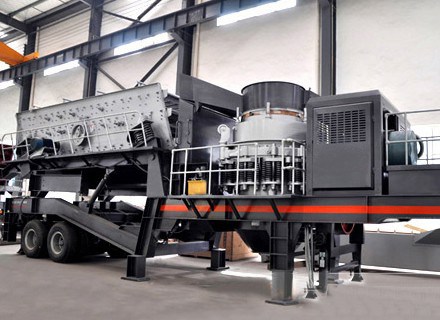

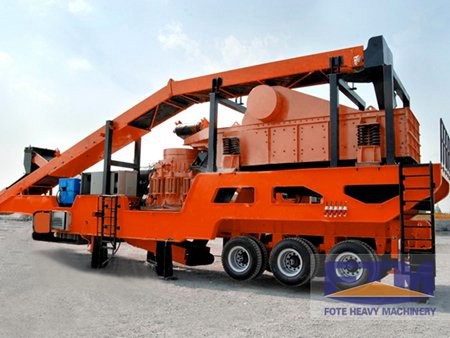

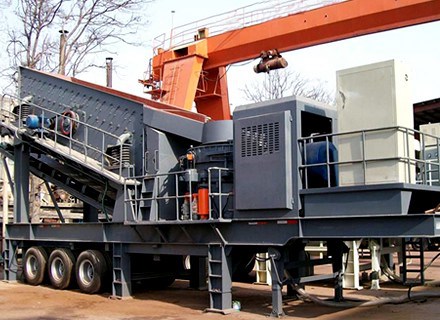

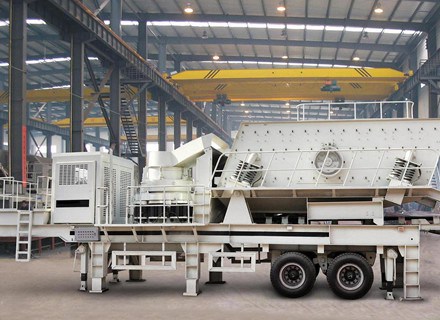

Tyre Mobile Cone Crusher   Tyre Mobile Cone Crusher

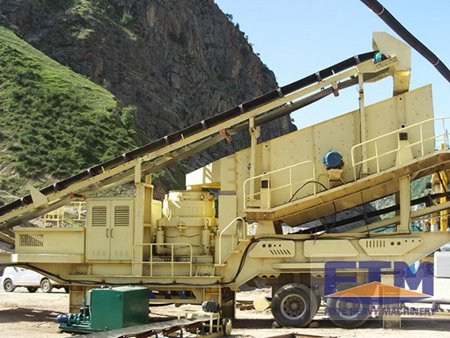

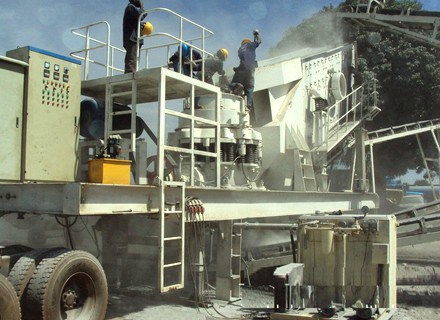

Wheeled mounted mobile cone crusher is widely used in mine, coal and for the recycling and reuse of trash and construction waste as well as urban infrastructure construction, road or construction site, and it is also suitable for the artificial sand making with river cobble, hillstone, mineral tailing and aggregate chips.

Tyre mobile cone crusher has such features as high crushing efficiency, light and reasonable structure design and outstanding crushing performance. The crushing cavity can be adjusted, thus expanding its use field and application ranges. The whole mobile crusher adopts integrated installation and coordinating work, which fully represents its advantages of convenience and flexibility. In addition, wheeled mobile cone crusher has strong processing capacity and can satisfy the crushing and screening requirement of coarse, medium and fine materials, so that it sets up a good quality reputation for the customers at home and abroad.

Technical Parameters
Items Unit FTM939G1210 FTM939GW1214II FTM1143G1214 FTM1143G1315 FTM1143GW1315II FTM1350GW1318II
Transportation length mm 11900 11900 13100 13100 13100 14600
Transportation width mm 2550 2550 2800 2900 2800 2800
Transportation height mm 3900 3900 4460 4450 4360 4500
Max. length mm 12110 12110 13300 13300 13300 14610
Max. width mm 2900 2950 2950 2960 2950 3250
Max. height mm 4100 4100 5200 5200 5200 5200
Weight t 39 44 44 54 57 62
Tyre configuration   Dual axial Dual axle Tri-axial Tri-axial Tri-axial Tri-axial
Cone crusher   PY-120 PY-1214II PY-1214 PY-1315II PY-1315S PY-1318II
Max. feeding size mm 300 500 300 350 600 700
Processing capacity t/h 70-130 130-200 90-180 120-250 180-320 240-400
Vibrating feeder   GZD960*3800 GZD960*3800 GZD1100*4200 GZD1100*4200 GZD1100*4200 GZD1300*4900
Main belt conveyor   B800*8.5M B800*8.5M B1000*9M B1000*9M B1000*9M B1200*9.5M
Side discharging belt conveyor (optional)   B450*3.2M B450*3.2M B500*3.5M B500*3.5M B500*3.5M B650*4M
Genset (optional) kw 200 250 250 330 330 380
De-ironing separator (optional)   RCYD(C)-8 RCYD(C)-8 RCYD(C)-10 RCYD(C)-10 RCYD(C)-10 RCYD(C)-12
