Mobile Crusher

Max. Feeding Size: 1500mm Production Capacity: 90-500t/h Applicable Materials: Granite, basalt, diabase, shale, sandstone, quartz stone, river pebbles, limestone, iron ore, copper ore, manganese ore, coal, non-ferrous metal ores, etc.

Mobile crusher is also called portable crusher, mobile rock crusher, mobile stone crusher and mobile crushing plant.

Get a Quote Services Online
Detailed Description

Mobile crusher is also called portable crusher, mobile rock crusher, mobile stone crusher and mobile crushing plant.

 It's the large crushing and screening equipment that combines feeding, crushing, screening and conveying, which can realize automatic walking. Design concept of mobile crusher is to completely adapt to different mobile crushing requirements and provide a new operation mode for clients, so as to greatly reduce the operation cost.

The mobile crusher is equipped with the most advanced crushing and screening devices, which is capable of crushing in a complex environment. We can configure the specific crushing equipment for customers according to their actual needs, so as to meet the different production requirements. When compared with ordinary crushers, mobile crusher has the advantages of convenient movement and small floor area, which can directly select the working site.

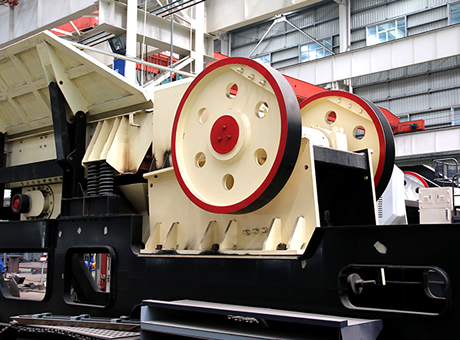

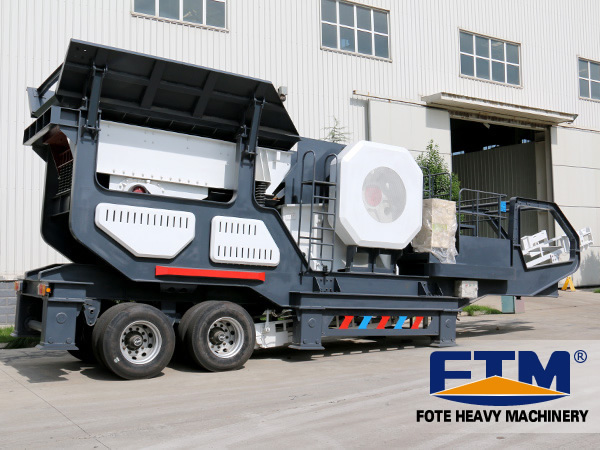

Mobile Crusher

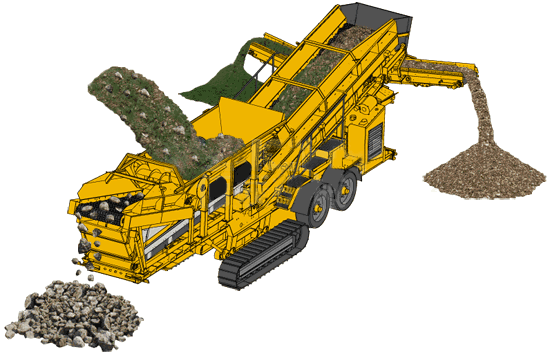

The Structure of Mobile Crushing Plant

Mobile crusher mainly consists of vibrating feeder, jaw crusher, impact crusher, cone crusher, sand making machine, belt conveyor, vibrating screen and other parts, customers can also choose other corresponding crushing equipment according to their own needs.

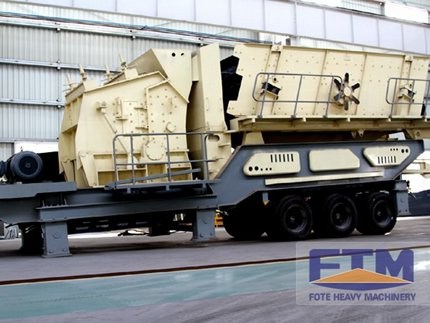

Mobile Crusher

Usage and Types of Mobile Stone Crusher

Mobile stone crusher is widely used for crushing and screening various rocks and ore like cobble, granite, basalt, andesite, iron ore, copper ore, coal, limestone, quartz stone, barite, diabase, gold ore and marble, etc, in the construction waste and mining waste disposal, engineering construction, municipal construction, transportation, mining, large hydropower station construction, coal mine, cement and other sectors.It can be divided into mobile jaw crusher, mobile impact crusher, mobile cone crusher, mobile vsi crusher, etc.

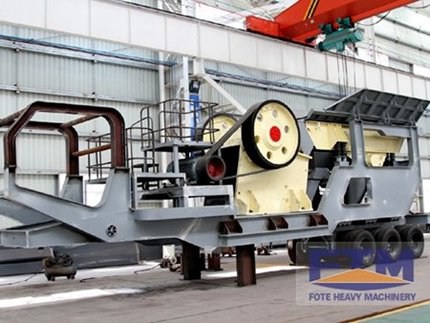

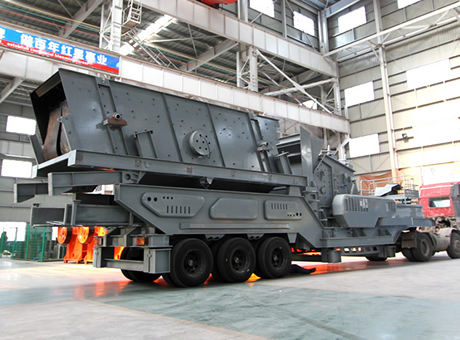

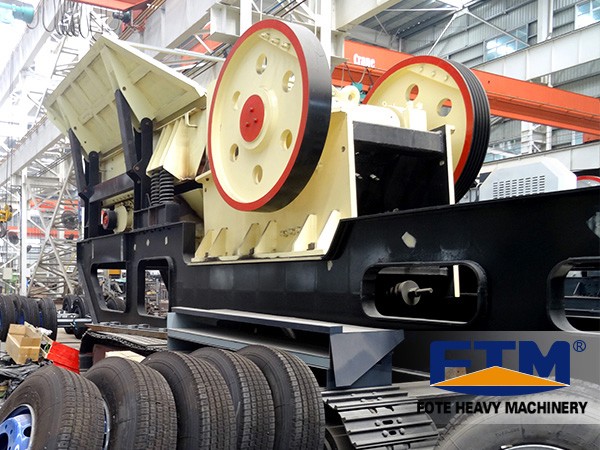

Mobile Jaw Crusher Mobile Impact Crusher
Mobile Jaw Crusher Mobile Impact Crusher

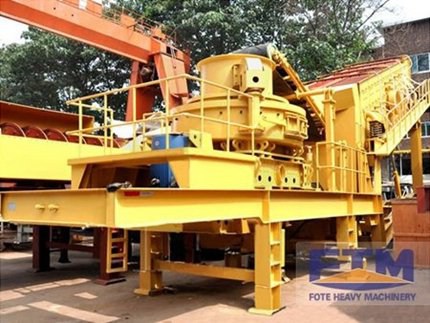

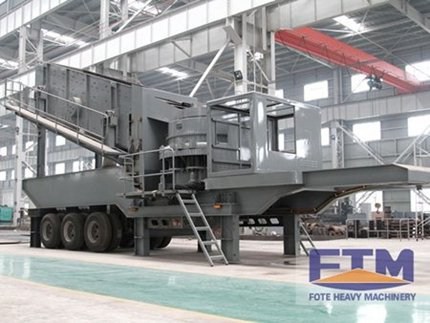

Mobile Cone Crusher Mobile VSI Crusher
Mobile Cone Crusher Mobile VSI Crusher

Advantages of Fote Mobile Crusher

1. Reasonable matching at all levels, flexible combination
2. Easy to move and climb.
3. Remarkable processing ability, big crushing ratio, uniform particle size.
4. High efficiency, reliable performance.
5. Low noise, low energy consumption, energy saving and environmental protection.
6. Reducing the transportation cost of materials.
7. Strong mobility, flexibility and adaptability.
8. Excellent structure, strong adaptability to the complex environment.
9. The integration settings can reduce the operating problems of a single machine.

Technical Parameters

MOBLIE IMPACT CRUSHER TECHICAL PARAMETERS

Model FTM938F1210 FTM938FW1214 FTM1149F1315 FTM1349HD1110 FTM1349HD1315
Transportation Length(mm) 12000 12000 13900 15450 15450
Transportation Width(mm) 2550 2550 2900 2950 2950
Transportation Height(mm) 3900 3900 4450 4500 4500
Maximum Length(mm) 12500 12500 13900 15450 15450
Maximum Width(mm) 3250 3260 3250 3250 3250
Maximum Height(mm) 5100 5200 5200 5200 5200
Weight(t) 39 44 54 62 62
Crusher Model PF-1210 PF-1214 PF-1315 HD1110 HD1315
The Maximum Feeding Size(mm) 350 350 500 400 700
Production Capacity(t/h) 70-130 100-180 130-250 112 280
Vibrating Feeder ZSW950×3800 ZSW950×3800 ZSW110×4900 ZSW130×4900 ZSW130×4900
Main Belt Conveyor B800×8.5M B800×8.5M B1000×9.5M B800×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3.2M B500×3.2M B650×4M B650×4M B650×4M
Genset(Optional) (kw) 320 320 400 320 440
Iron Separator (Optional)(kw) RCYD(C)-8 RCYD(C)-8 RCYD(C)-10 RCYD(C)-8 RCYD(C)-12

MOBLIE JAW CRUSHER TECHNICAL PARAMETERS

Model FTM938HD80 FTM1149HD98 FTM1349HD110 FTM1349HD125
Transportation Length(mm) 12600 13500 14500 15200
Transportation Width(mm) 2600 2700 2800 2900
Transportation Height(mm) 3870 4200 4450 4500
Maximum Length(mm) 12500 14000 16100 16700
Maximum Width(mm) 4100 4500 5100 5100
Maximum Height(mm) 4100 4900 5000 5300
Weight(t) 39 57 55 65

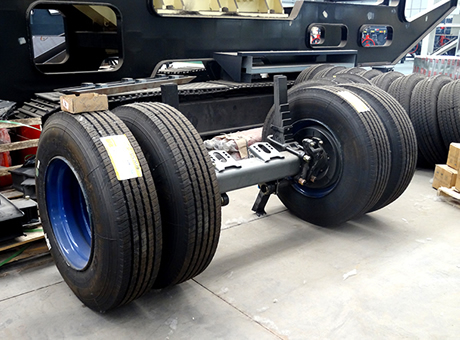

Tire Configuration Dual-axial Dual-axial Dual-axial Dual-axial
Jaw Crusher HD80 HD98 HD110 HD125
Maximum Feeding Size(mm) 500 550 660 800
Discharge Opening Size(mm) 50-150 75-175 100-200 125-225
Capacity(t/h) 85-275 110-350 215-510 280-650
Vibrating Model ZSW380×95 ZSW420×110 ZSW490×130 ZSW490×130
Main Belt Conveyor B800×8.5M B1000×9.5M B1000×11M B1200×11M
Side-opening Belt conveyor(Optional) B500×3M B650×3.5M B650×4M B650×4M
Genset(Optional) (kw) 200 250 270 400
Iron Separator (Optional) RCYD(C)-8 RCYD(C)-10 RCYD(C)-10 RCYD(C)-12
