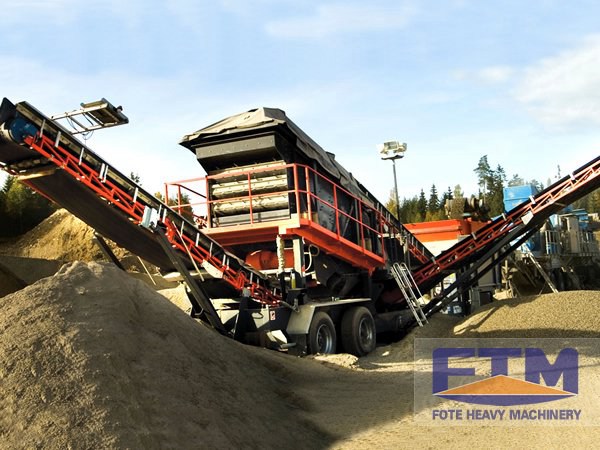

Mobile Screening Plant

Type: Vibrating Screen Input Size: 3-80mm Transportation length: 10280-11480mm Processed Materials: Concrete waste, iron ore, copper ore, gold ore, manganese ore, gravel, granite, river stone, basalt, limestone, dolomite, quartz, coal, etc. Applications: Mining, metallurgy, construction, highway, railway, and water conservative, etc.

Tyre mobile screen station is designed and manufactured adopting Germany technology which has reached international advanced level.

Get a Quote Services Online
Detailed Description

Mobile screening plant is designed and manufactured adopting Germany technology which has reached international advanced level.

In the design process, this machine widely adopts the most advanced mobile crushing and screening technology in the world, so that it can totally satisfy the mobile screening requirement of the customers. At any topographic condition, tyre mobile screen station can get to any position of the working site.

Tyre mobile screen station is a mobile machine equipped with vibrating screen and it can be put into production the moment it reaches the working site. Its optimized design can satisfy the most desirable technical features of the vibrating screen and the production efficiency is high and the granularity of the final products is even.

Mobile Screening Plant

Performance Features of Wheel Mounted Mobile Screen

1. It is equipped with high-performance screen box.
2. It is able to continuously complete the screening work with high efficiency.
3. It can automatically screen and adjust the production process and maximize the screening efficiency.
4. It has low noise and low emission.
5. It can carry out climbing work, so that it can satisfy the screening requirement in mine, hydropower station and coal mines.

Wheeled mobile screen has the screening system for both coarse crushing and fine crushing, and it can be independently used for production and combined with coarse crushing equipment for compound work. The side discharge hopper provides flexible configurations for the conveying methods of the screened materials. The diesel engine in the integrated machine configuration can not only drive the movement of the machine, but provide joint power supply for the production process system.

Technical Parameters
Items
Model FTM1548YK2S FTM1548YK3S FTM1860YK3S FTM2160YK2S FTM2160YK3S FTM2160YK4S
Transportation dimension Model
Length 14000 14760 13280 15250 16000 12680
Width 3320 2780 3180 3720 3120 4360
Height 4190 4510 4560 4510 4690 4570
Weight 22.9 23.9 22.8 28.6 33.2 24.8
Axle load 14.1 10.3 22.5 16.9 23.9 17.8
Traction pin/load 50/9.8 50/13.6 50/2.3 50/11.7 50/9.3 50/7.0
Vibrating screen
Model 2YK1548 3YK1548 3YK1860 2YK2160 3YK2160 4YK2160
Feeding belt conveyor
Model B800X12Y B800X12Y No B800X12Y B1000X12.7Y B800X12Y
Under-screen belt conveyor
Model B650X7.5Y B650X7.5Y B800X8.2 B1000X8.2Y B1000X8.2Y No
Number of axles of frame
Number of axles dual axle dual axle dual axle dual axle dual axle dual axle
