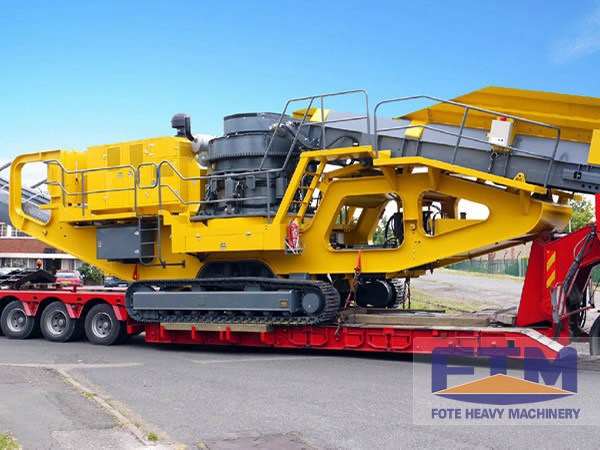

Crawler-type Mobile Cone Crusher

Cone crusher: Secondary Crusher Input size: 0-200mm Vibrating feeder: Necessary Equipment Processed Materials: Iron ore, copper ore, gold ore, manganese ore, limestone, granite, basalt, andesite, quartz, silica, gypsum, volcanic rock, marble, river stone, gravel, coal, etc.

The crawler-type mobile cone crusher produced by Fote Machinery perfectly combines the mobile crushing station with strong adaptability and convenient mobility and the outstanding cone crusher in the crusher industry.

Get a Quote Services Online
Detailed Description

The crawler-type mobile cone crusher produced by Fote Machinery perfectly combines the mobile crusher plant with strong adaptability and convenient mobility and the outstanding cone crusher in the crusher industry. Cone crusher itself is a special crushing machine. In recent years it has fast development, and other than standard type cone crusher, many types of cone crushers are researched and developed, including compound cone crusher and multi-cylinder hydraulic cone crusher.

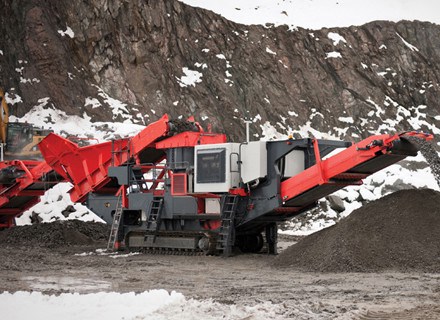

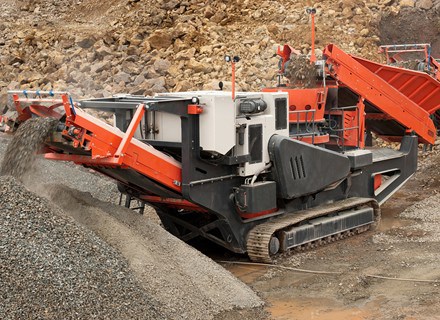

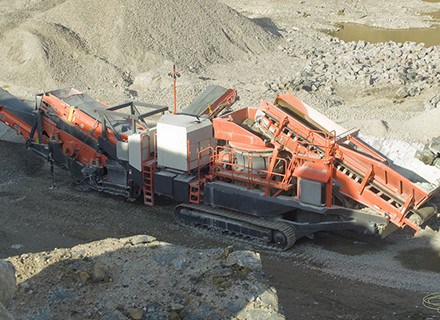

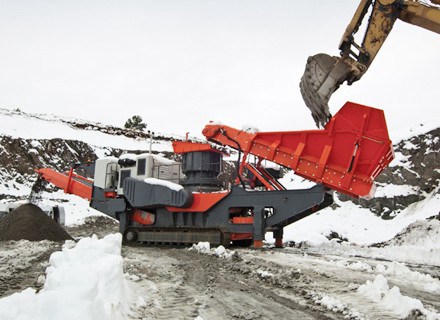

Mobile Cone Crusher

In addition, every cone crusher can be changed with the relative spare parts according to the needs to become standard type, medium type and short-headed type, which are respectively used for coarse crushing, medium crushing and fine crushing. Crawler-type mobile cone crusher is also equipped with self safety device, so that when uncrushable materials go into the crushing chamber or the machine is overloaded, it will automatically discharge the foreign matters, thus avoiding the damage to the equipment, and quickly resume to normal production. Crawler-type mobile cone crusher is widely used for the production sites of road paving, building material, slag crushing and sand aggregates.

The crawler-type mobile cone crusher manufactured by Fote Machinery is suitable for various complicated working conditions, and the cone crushers can be equipped with many types, so that it can adapt to coarse crushing, medium crushing and fine crushing, and what is more, it is equipped with self safely device.

When tracked mobile cone crusher works, the eccentric shaft sleeve will rotate driven by the electric motor through the transmission device, and the movable cone will rotate driven by the eccentric shaft sleeve. In the process in which the crushing chamber constantly becomes large and small, the stone materials will be gradually crushed. When the stone materials reach the desired granularity, they will automatically fall down and be discharged when the crushing chamber becomes large.

Performance Features of Track Mounted Cone Crusher

1. The spring protective device will automatically expand the discharging mouth when uncrushable materials go into the crushing chamber to let the foreign matters go through the crushing chamber to avoid the damage to the equipment and quickly resume to normal production.
2. The design structure is simple, so is the operation and maintenance of the equipment.
3. Overall hydraulic operation can realize automatic production.
4. The examination and repair is convenient, thus shortening the stoppage time.
5. The failure rate is low and the non-failure operation time can exceed 85%.

Technical Parameters
Model WT160SC WT250SC WT300HPM WT400HPM
Dimensions of Transmission Devices Length 16800mm 19000mm 19000mm 19500mm
Width 3500mm 3600mm 3900mm 3900mm
Height 3700mm 3800mm 3800mm 3800mm
Weight 50t 60t 55t 65t
Belt Conveyor Hopper Volume 3m³ 3m³ 3m³ 3m³
Loading Height 2600m 2600m 2600m 2800m
Loading Width 1900mm 1900mm 1900mm 1900mm
Dimensions(Width×Length) 1000×6300mm 1000×6300mm 1000×6300mm 1200×6500mm
Crusher Model SC160 SC250 HP300 HP400
Inlet Dimensions 75-360mm 75-450mm 60-200mm 68-280mm
Max.Feeding Size 360mm 450mm 200mm 280mm
Min. Discharging Size 8-25mm 8-35mm 8-45mm 8-51mm
Main Belt Conveyor Dimensions(Width×Length) 1000×9000mm 1000×10000mm 1000×10000mm 1000×11000mm
Dumping Height 3100mm 3490mm 3490mm 3690mm
Secondary Screen Dumping Height 4200mm 4200mm 4400mm 4400mm
Model FT1536 FT1536 FT1536 FT1536
Sieve Dimensions 1500×3600mm 1500×3600mm 1500×3600mm 1500×3600mm
Belt Conveyors at the Bottom Dimensions(Width×Length) 1000×5600mm 1000×5600mm 1000×5600mm 1000×6500mm
Dumping Height 3020mm 3020mm 3020mm 3300mm
Belt Conveyors to the Sieve Dimensions(Width×Length) 650×2100mm 650×2100mm 650×2100mm 650×2100mm
Dumping Height 1370mm 1370mm 1370mm 1370mm
Belt Conveyors for Discharging Material Dimensions(Width×Length) 650×10000mm 650×10000mm 650×11000mm 650×11000mm
Dumping Height 4200mm 4200mm 4400mm 4400mm
Diesel Engine Power 96kw 132kw 106kw 132kw
Manufacturer Carter Perkins Carter Perkins Carter Perkins Carter Perkins
The Main Machine Power 207.12kw 297.12kw 267.12kw 362.12kw
Ways of Controlling Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional) Wired/Wireless (optional)
