Sand Dryer

Brand Name: Fote Input Moisture: 5-75% Output Moisture: 1-15% Drum Materials: Heat-resisting steel sheet Heat Source: Coal, oil, natural gas, timber

Sand dryer, which can also be called river sand dryer, yellow sand dryer and silica sand dryer or quartz sand dryer, is a dryer machine that can process large quantities of materials and it has such advantages of reliable working condition, high production capacity,etc.

Get a Quote Services Online
Detailed Description

Brief Introduction to Sand Dryer

Sand dryer, which can also be called river sand dryer, yellow sand dryer and silica sand dryer or quartz sand dryer, is a dryer machine that can process large quantities of materials and it has such advantages of reliable working condition, high production capacity, wide application range, elastic operation, strong adaptability and big processing capacity. Sand dryer is generally suitable for granulous materials, especially sand, river sand and silica sand.

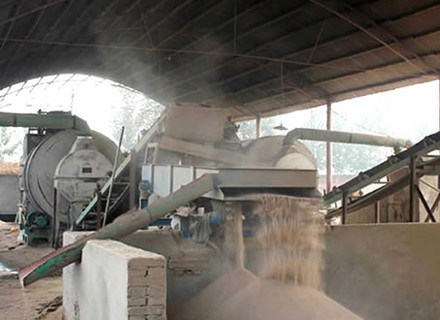

Application Range of Sand Dryer

Sand dryer can be used for drying all kinds of raw materials such as river sand, dry-mixed mortar, yellow sand, slag in cement plant, clay, gangue, mixture, pulverized coal, gypsum, iron powder and limestone in building material, chemistry, casting and other industries.

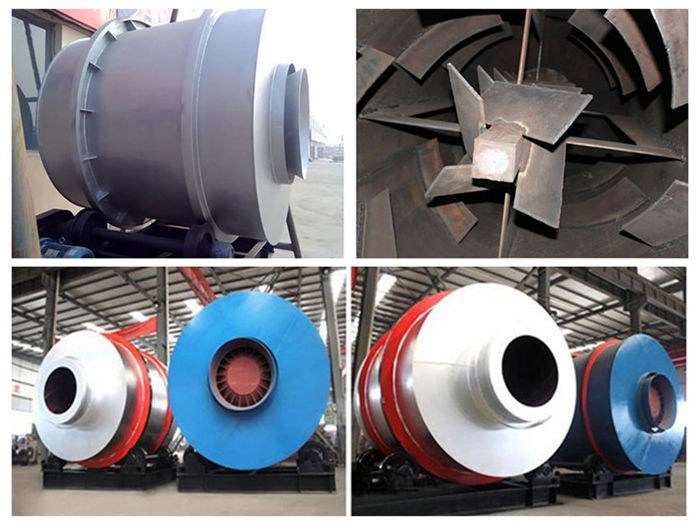

Sand Dryer

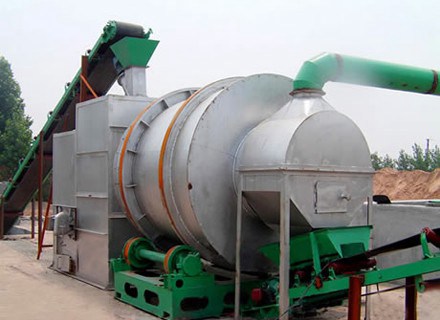

Structure of Sand Dryer

A sand dryer machine is mainly composed of cylinder, front roller ring, back roller ring, gear, catch roller, riding roller, pinion, discharging part, lifting board, reducer, motor, hot air pipe, feeding chute and blast furnace. In addition, according to the specific need of the customers, it can also be equipped with gas generator, combustion room or bucket elevator, belt conveyor, quantitative feeder machine, cyclone dust collector and air inducing machine.

Technical Parameters
Item/Unit/Model Φ2.5×7m Φ2.7×7m Φ3.0×7.0m Φ3.2×7.0m Φ3.6×8m
Diameter of outer cylinder(m) 2.5 2.7 3.0 3.2 3.6
Length of outer cylinder(m) 7 7 7.0 7.0 8
Cylinder volume( m³ ) 16.63 16.63 52.678 52.678 81.38
Rotating speed of cylinder(rpm) 4-10 4-10 4 -10 4 -10 4 -10
Initial moisture of slag(%) 10-12 10-12 10-12 10-12 10-12
Final moisture of slag(%) 1 1 1 1 1
Initial moisture of yellow ground(%) 8-10 8-10 8-10 8-10 8-10
Final moisture of yellow ground (%) 0.5-1 0.5-1 0.5-1 0.5-1 0.5-1
Highest intake air temperature(℃) 700-750℃ 700-750℃ 700-750℃ 700-750℃ 700-750℃
Production capacity(T/h) Yellow sand25-30
Slag20-25
Yellow sand30-35
Slag25-30
Yellow sand35-40
Slag30-35
Yellow sand45-50
Slag35-40
Yellow sand65-70
Slag60-65
Motor type Y2-132m-4E Y2-132m-4E Y2-160m-4 Y2-160m-4 Y2-160m-4
Motor power(kw) 7.5×2 11×2 7.5×4 7.5×4 15×4
Reducer type XWD7-23-11W XWD7-23-11W XWD6-23-7.5KW XWD6-23-7.5KW XWD8-23-15KW
Velocity ratio of reducer 29 29 29 29 29
