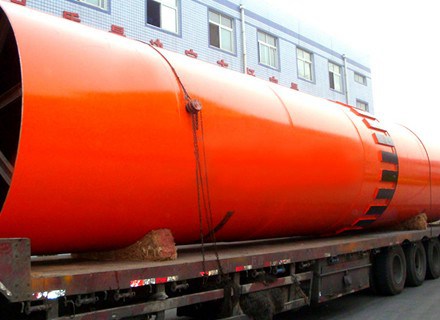

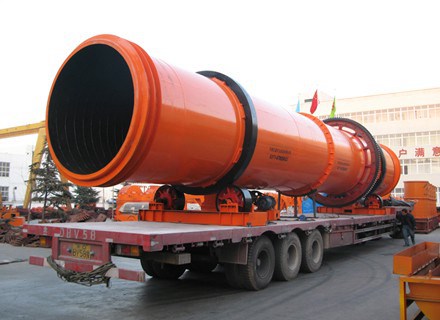

Industrial Dryer

Condition: New Brand Name: Fote Warranty: One year Drying Materials: sawdust , palm shell, wood chips, bagasse, straw, vinasse , slag, coal powder, mining powder, clay, sand, limestone and so on.

The heat source of industrial dryer comes from the combustion apparatus and Fote industrial dryer machine adopts concurrent heating method. Industrial drying machine is widely used in such industries as fodder, chemistry, medicine and mine.

Get a Quote Services Online
Detailed Description

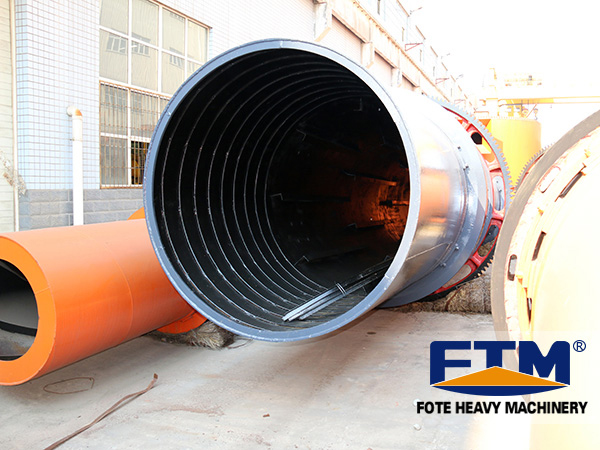

The heat source of industrial dryer comes from the combustion apparatus and Fote industrial dryer machine adopts concurrent heating method. For this reason, the materials to be dried go into the cylinder from the feeding box or feeding chute and then pushed back by the spiral lifting board.

 As the dryer machine is obliquely put, the materials flow to the lower end under gravity and the rotation of the cylinder on one hand, and on the other hand, the materials will be repeatedly lifted by the lifting board to upper end and scattered down, so that the materials will form a even material curtain inside the cylinder and carry out sufficient heat exchange with the heat airflow inside the cylinder. As the materials are repeatedly scattered, the water containing in the materials will be gradually dried, thus reaching the goal of drying.

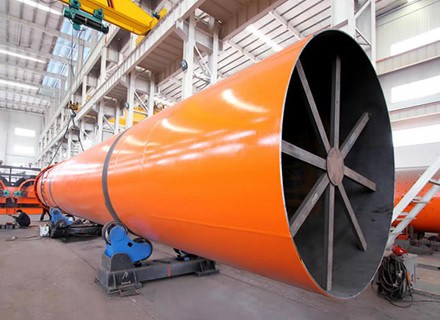

Industrial Dryer

Application Range of Industrial Dryer

Industrial drying machine is widely used in such industries as fodder, chemistry, medicine and mine. The working process of industrial dryer machine goes like this: the moist materials whose water has been drained go into the dryer machine, under the rotation of the lifting board evenly installed inside the roller drum, the materials will be evenly scattered inside the drying machine and carry out sufficient contact with the hot air, thus accelerating the heat transfer and mass transfer. In the drying process, under the lifting board with a certain inclination and the heat media, the materials will move to the lower end of the dyer machine and be discharged. Industrial dryer for sale is suitable for drying residue materials whose water content is below 85% such as brewer’s grain, bean dregs, guniting corn bran, slurry and pomace, so that it has excellent effect for opening up fodder resources, reducing the feeding cost and reduce environment pollution.

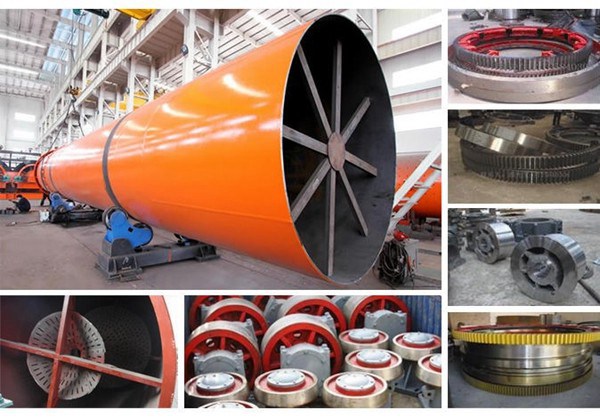

Industrial Dryer

Working Principle of Industrial Dryer

Industrial dryer has a rotating roller and the internal cylinder drives the machine through the belt. There is hot air around the roller to evaporate the water. The drying cylinder of Fote industrial dryer machine adopts the principle of clockwise or counter- clockwise revolution to reach the material drying effect. Modern drying equipment is controlled by computer, and according to different drying requirements, it can have different drying temperature and drying time. The roller is made of stainless steel plate with excellent heat resistance, and the internal wall is smooth, thus reducing the abrasion of the materials. The highly efficient radiator and reasonable fandrift make sure the hot air directly contact the materials, thus greatly improving the drying efficiency and saving energy.

Technical Parameters
Model(m) Production capacity(T/H) Main motor Main reducer Weight(T)
Power(KW) Model Model Velocity ratio
Φ1.2×10m 2.5 7.5 Y160M-R3 ZL50-16-I   13.5
Φ1.5×12m 3.3-4.9 10 Y160L-6-B3 JZQ500-Ⅲ-2F   18.9
Φ1.5×15m 4-6 18.5 Y200L1-6 JZQ500-Ⅲ-2F   21
Φ1.8×12m 4-6 11 Y160L-6 ZQ50-16Ⅱ-2 16.46 22.83
Φ2.2×12m 7-12 18.5 Y200L7-6 JZQ650-Ⅲ 31.5 37.6
Φ2.2×14m 7-12 18.5 Y200L7-6 JZQ650-Ⅲ 31.5 40
Φ2.2×16m 12 30 Y225M-6 JZQ750-Ⅲ 31.5 45
Φ2.4×14m 12 30 Y250M-6 JZQ750-Ⅲ 31.5 51
Φ2.4×18m 10-13 37 Y250M-6 ZL85-13-I 27.16 54
Φ2.4×20m 10-14 37 Y250N-6 ZL85-13-I 27.16 54.14
Φ3×20m 25 55 Y250M-4

ZL100-16-I 41.52 78
Φ3×25m 32-36 75 YR280M-4 ZL100-16-I 41.52 104.9
