Drum Dryer

Condition: New Brand Name: Fote Warranty: One year Drying Materials: sawdust, palm shell,wood chips,bagasse,straw,vinasse,slag,coal powder, mining powder,clay,sand,limestone and so on.

Drum dryer is one of traditional dryer machines. This equipment has such advantages as reliable working condition, elastic operation, strong adaptability and high processing capacity,so that it is widely used in many fields such as metallurgy, building material, chemistry, coal washing, fertilizer, sand, ore, clay, kaolin and sugar.

Get a Quote Services Online
Detailed Description

Drum dryer is one of traditional dryer machines. This equipment has such advantages as reliable working condition, elastic operation, strong adaptability and high processing capacity, so that it is widely used in many fields such as metallurgy, building material, chemistry, coal washing, fertilizer, sand, ore, clay, kaolin and sugar.

The diameter of drum drier is 1000-4000mm, and the length can be determined according to the specific drying requirement. The moist materials that go inside the cylinder of the dryer machine will be repeatedly lifted and scattered by the lifting board on the rotating wall, and in the falling process, the materials will be crushed by the scattering device into fine particles whose specific area is greatly increased, and the fine materials will sufficiently contact the hot air and will be dried.

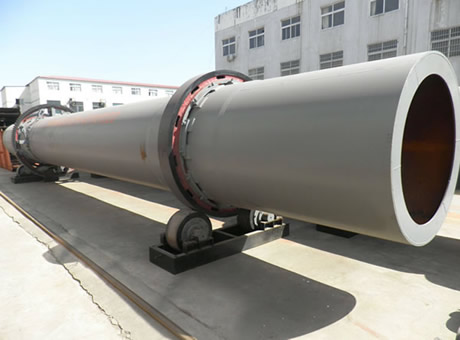

Drum Dryer

Product Features

Drum dryer machine has high processing capacity, low fuel consumption and low drying cost. Fote drum drier has heat resisting features, so that it is able to use high-temperature hot air to quickly dry the materials. It has strong expansion capacity, and the design takes the production margin into consideration, so that even the output increases, there is no need to change the equipment.

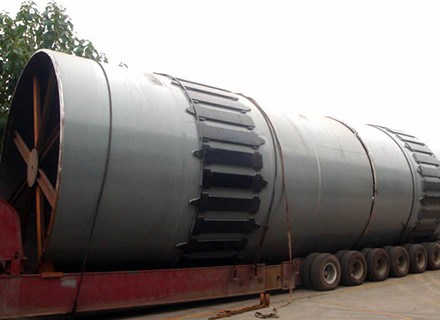

Drum Dryer

This drum drying machine adopts the structure of self-aligning tug which is excellently matched with the roller ring, thus greatly reducing the abrasion and power consumption. The specially designed catch wheel greatly reduces the horizontal thrust caused due to the slant of the equipment. Fote rattler-drying machinery has strong anti-overload capacity, stable operation and high reliability.

Application Range

(1) In chemistry, mine and metallurgy, drying ore, slag, coal, metal powder, clay, kieselguhr and kaolin.
(2) In agriculture, fodder and fertilizer industry, drying straw, grass, leaves, fish meal, corn sauce, starch residue, lees, medical, pomace, soy sauce residue, bagasse, peat, organic compound fertilizer, sludge, waste of aquatic products, food waste, the abattoir waste, organic fertilizer, inorganic fertilizer, phosphate fertilizer and ammonium sulphate.
(3) Dry powdery and granuluous materials with special requirement such as crystalline, light calcium carbonate, activated clay, magnetic powder, graphite, inorganic mud, argil, lime slurry, mineral slurry, phosphorus ore slag and red mud.
(4) Dry the materials that require to be dried with low temperature and need to be dried with large quantity and continuously.

Technical Parameters
Length and Diameter Volume Reducer Thickness (mm) Weight (T) Power(kw) Fan power (kw) Yield(t)
Φ 0.8 × 8 4 JZQ350 8 3.2 4 4 0.5-2
Φ 0.8 × 10 5 JZQ350 8 3.7 4 4 0.5-2.5
Φ 1 × 8 6.3 JZQ350 8 4.5 5.5 4 1-2.5
Φ 1 × 10 7.9 JZQ350 8 5.2 5.5 5.5 1-3
Φ 1 × 12 9.4 JZQ350 8 5.7 7.5 5.5 1-4
Φ 1.2 × 10 11.3 JZQ400 10 9 11 7.5 1-4.5
Φ 1.2 × 12 13.6 JZQ400 10 10 11 7.5 1-4.8
Φ 1.2 × 14 15.8 JZQ400 10 11 11 7.5 1-5
Φ 1.2 × 16 18 JZQ400 10 12 11 7.5 2-6
Φ 1.5 × 12 21.2 JZQ500 12 14.4 11 7.5 2-9
Φ 1.5 × 14 24.7 JZQ500 12 15.6 15 11 2-9.5
Φ 1.5 × 16 28.3 JZQ500 12 16.8 15 11 2-10
Φ 1.8 × 14 35.6 JZQ500 16 23 18.5 15 5-11
Φ 1.8 × 16 40.7 JZQ500 16 24.5 18.5 15 5-12
Φ 1.8 × 18 45.8 JZQ500 16 26 18.5 15 5-13
Φ 2 × 18 56.5 JZQ650 18 31 22 18.5 5-15
Φ 2 × 20 62.8 JZQ650 18 33 30 22 5-16
Φ 2 × 22 69 JZQ650 18 35 30 22 5-17
Φ 2.2 × 18 68.3 JZQ650 20 38 30 22 8-18
Φ 2.2 × 20 75.9 JZQ650 20 42 30 22 8-19
Φ 2.2 × 22 83.5 JZQ650 20 46 30 22 8-20
Φ 2.2 × 24 91.1 JZQ650 20 50 30 22 8-21
Φ 2.4 × 16 72.3 JZQ650 22 45 37 30 10-20
Φ 2.4 × 20 90.4 JZQ750 22 51 45 37 10-22
Φ 2.4 × 24 108.2 JZQ750 22 60 55 37 10-25
Φ 2.4 × 28 126.6 JZQ750 24 67 75 55 10-30
Φ 2.7 × 18 1.03 JZQ750 24 55 75 55 15-25
Φ 2.7 × 24 137.3 JZQ750 24 68 75 55 15-30
Φ 3 × 20 141.3 JZQ900 25 81 75 55 25-30
Φ 3.2 × 20 160 JZQ900 25 95 90 55 25-35
Φ 3.2 × 28 225 JZQ900 25 101 90 75 25-40
Φ 3.5 × 24 230 JZQ900 25 120 110 75 30-50
