Lignite Dryer

Condition: New Brand Name: Fote Warranty: One year Drying Materials: sawdust , palm shell, wood chips, bagasse, straw, vinasse , slag, coal powder, mining powder, clay, sand, limestone and so on.

Lignite dryer or lignite coal dryer is a drying machine mainly used for drying lignite coal. Lignite rotary dryer adopts the new technology of first crushing and scattering the lignite coal and drying it with heating power, making the drying disposal of the materials realize continuity, industrialization and automation.

Get a Quote Services Online
Detailed Description

Lignite dryer or lignite coal dryer is a drying machine mainly used for drying lignite coal. Traditional drying method adopts centrifugal machine for dehydration, and the equipment is expensive and has low production capacity and small dehydration extend. Generally it can only reduce about 10% of the water and there is still 15%-20% of water content.



 Lignite rotary dryer adopts the new technology of first crushing and scattering the lignite coal and drying it with heating power, making the drying disposal of the materials realize continuity, industrialization and automation. The water content of the moist lignite coal processed by brown coal dryer can be reduced from 25%~30% to below 13%, and the moist lignite coal can be used as bunker coal, thus improving the coal washing and dressing technology and having excellent economic, social and environmental benefits.

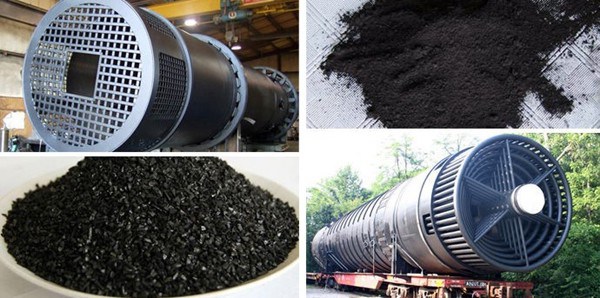

Lignite Dryer

On the condition of maintaining the quality of the lignite coal, lignite rotary dryer adopts low-temperature four-level drying technology to evaporate the water containing in the lignite coal to below 13%. The first-level drying area removes most water at the high temperature sate with 400℃ of high temperature, making sure that the chemical component of the lignite coal remains the same and that the lignite coal is not easy to burn; the second-level drying area has the indoor temperature of 300℃, it will remove the water through medium-temperature strong induced air to make sure that the lignite coal do not have coking; the third-level drying area has the indoor temperature of 120℃-210℃, and the crushing device inside the roller will repeatedly hit and scatter the materials and dry them with fair current; the fourth-level drying area is high exhaust area, and the indoor temperature is 60℃-80℃, and the water containing in the materials will be removed by the low-temperature hot airflow with negative pressure of the induced air system.

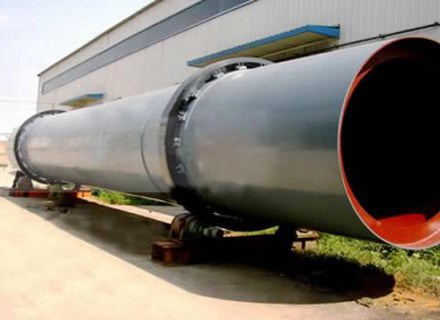

Lignite dryer

Features of Lignite Coal Dryer

(1) Lignite coal dryer has strong anti-overload capacity, big processing capacity, low fuel consumption and low drying cost.
(2) It adopts concurrent drying method, so that the smoke and the moist materials go into the dryer machine from the same side. Relying on the high-temperature smoke, the materials will get high evaporation intensity. The outlet temperature of the drying machine is low and the heat efficiency is high.
(3) According to the property of different materials, the running parameters of the equipment can be changed, so that the materials inside the dryer cylinder can form stable and whole section of material curtain to improve the mass and heat exchange.
(4) It adopts new type of feeding and discharging device, thus completely eradicating feeding blockage, incontinuity, uneven and returning charge and reducing the load of the dust collection system.


(5) The new type of internal structure strengthens the clearance and heat conduction of the scattered materials and eliminates the stickiness of materials on the internal wall of the cylinder, so that it has stronger adaptability to the water content and stickiness of the materials.
(6) Lignite coal dryer realizes zero horizontal thrust, thus greatly reducing the abrasion of the catch wheel and riding wheel and making the operation of the cylinder stable and reliable.
(7) Lignite coal dryer adopts self-aligning riding wheel device, so that the matching of the riding wheel and the roller ring is always in a linear contact state, thus greatly reducing the abrasion and power consumption.
(8) According to the customers' requirement, it can control the product granularity and water content. The water content of the final products can reach below 8% and the granularity can be controlled to below 8mm.

Technical Parameters
Product Specification
(m)
Processing capacity(t/h) Motor power-type
(kw)
Reducer type Feeding moisture(%) Heat value of bunker coal Discharging moisture
(%)
Φ1.2x10 2.5-3 M160M-6-7.5 ZQ350Ⅱ-25 25±5 ≥5500 ≤13
Φ1.5x14 7-9 Y180L-6-15 ZQ400Ⅱ-31.5 25±5 ≥5500 ≤13
Φ1.5x18 9.5-12 Y180L-6-15 ZQ400Ⅱ-31.5 27±5 ≥5500 ≤13
Φ1.8x14 12-15 Y200L-6-18.5 ZQ400Ⅱ-31.5 25±5 ≥5500 ≤13
Φ1.8x18 14-18 Y200L1-6-18.5 ZQ400Ⅱ-31.5 27±5 ≥5500 ≤13
Φ2.0x18 18-22 Y200L2-6-22 ZQ50Ⅱ-31.5 25±5 ≥5500 ≤13
Φ2.0x20 18-23 Y200L2-6-22 ZQ50Ⅱ-31.5 30±5 ≥5500 ≤13
Φ2.2x18 21-25 Y200L2-6-22 ZQ65Ⅱ-31.5 27±5 ≥5500 ≤13
Φ2.2x20 22-25 Y225M-6-30 ZQ65Ⅱ-31.5 30±5 ≥5500 ≤13
Φ2.4x20 25-29 Y225M-6-30 ZQ75Ⅱ-31.5 27±5 ≥5500 ≤13
Φ2.4x22 26-30 Y225M-6-30 ZQ75Ⅱ-31.5 30±5 ≥5500 ≤13
Φ2.6x20 28-33 Y250M-6-37 ZQ85Ⅱ-31.5 25±5 ≥5500 ≤13
Φ2.6x24 29-35 Y250M-6-37 ZQ85Ⅱ-31.5 30±5 ≥5500 ≤13
Φ3.0x20 45-50 Y280S-6-45 ZQ100Ⅱ-31.5 25±5 ≥5500 ≤13
